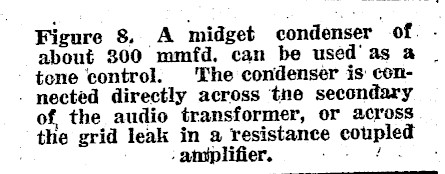

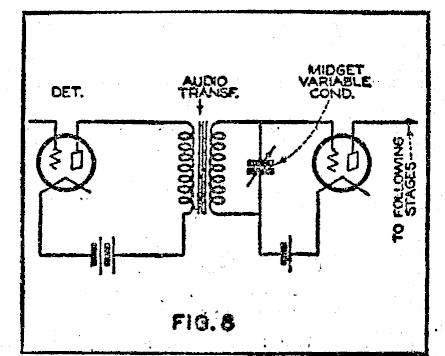

Figure 8. A midget condenser of about 300 mmfd. can be used as a tone control. The condenser is connected directly across the secondary of the audio transformer, or across the grid leak in a resistance coupled amplifier.
