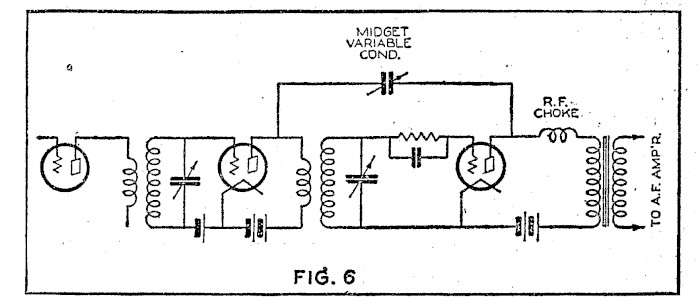

Figure 6.—A method of increasing sensitivity and selectivity by adding regeneration to the detector circuit. This arrangement can be used with many types of sets, a.c. or d.c., screen grid or otherwise. The midget variable condenser is connected from the plate of the detector tube to the plate of the preceding r,f, amplifier tube.
