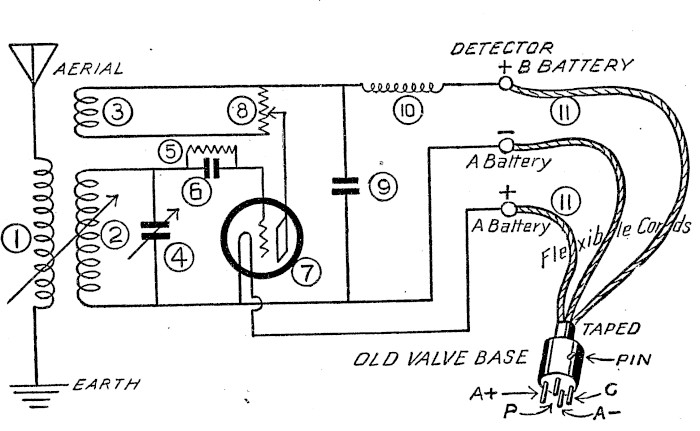

DETAILS OF THE "RADIO RECORD" SHORT-WAVE ADAPTER. Figure (1) Primary coil; (2) secondary oil; (3) tickler coil; (4) variable straight-line frequency condenser (.00025 mfd.); (5) variable grid leak (3 meg.); (6) fixed grid condenser (.00025 mfd.); (7) Benjamin or similar type anti-shock valve socket; (8) variable high resistance (200,000 to 500,000 ohms.); (9) fixed by-pass condenser (.0001 mfd.); (10) short-wave radio frequency choke; (11) Flexible insulated cable.
