Questions and Answers

Radio Record, Volume VI, Issue 33, 24 February 1933, Page 21

Questions and Answers

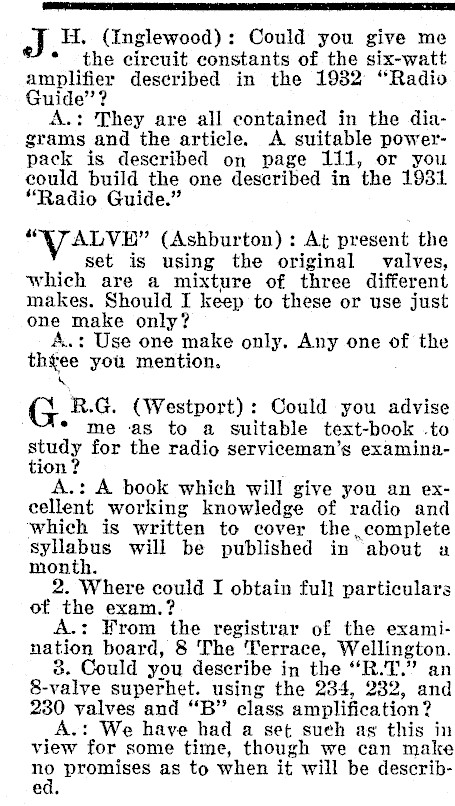

ed. H, (Inglewood): Could you give me the circuit constants of the six-watt amplifier described in the 1932 "Radio Guide"? A.: They are all contained in the diagrams and the article. A suitable powerpack is described on page 111, or you could build the one described in the 1931 "Radio Guide." ALVE" (Ashburton) : At present the set is using the original valves, which are a mixture of three different makes. Should I keep to these or use just one make only? : Use one make only, Any one of the thtee you mention. \ G R.G. (Westport): Could you advise me as to a suitable text-book .to study for the radio serviceman’s examinaion ? A.: A book which will give you an excellent working knowledge of radio and which is to cover the, complete syllabus will be published in about a month. 2. Where could I obtain full particulars of the exam.? A.: From the registrar of the examination board, 8 The Terrace, Wellington. 3. Could you describe in the "R.T." an 8-valve superhet. using the 234, 232, and 230 valves and "B" class amplification ? A.: We have had a set sueh as this in view for some time, though we can make no promises as to when it will be described.

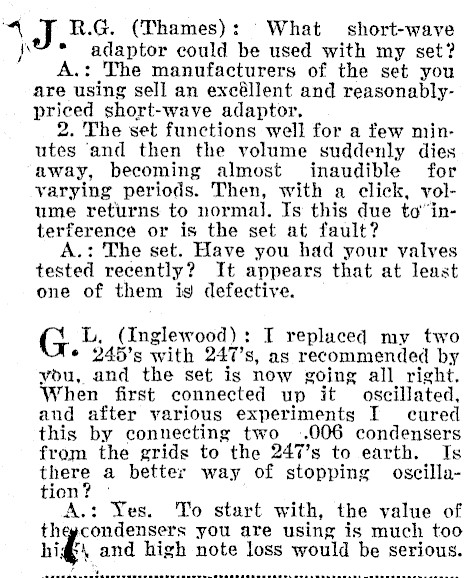

iJ. R.G. (Thames): What short-wave adaptor could be used with my set? : The manufacturers of the set you are sell an excéllent and reasonablypriced short-wave adaptor. 2. The set functions well for a few minutes ‘and then the volume suddenly dies away, becoming almost inaudible for yarying periods. Then, with a click, volume returns to normal. Is this due tointerference or is the set at fault? A.: The set. Have you had your valves tested recently? It appears that at least one of them ig defective. G L. (Inglewood): I replaced my two * 245’s with 247’s, as recommended by you, and the set is now going all right. When first connected up it oscillated, and after various experiments I cured this by connecting two -.006 condensers from the grids to the 247’s to earth. Is there a better way of stopping oscillatien? A.: Yes. To start with, the value of theycondensers you are using is much too hig and high note loss would be serious.

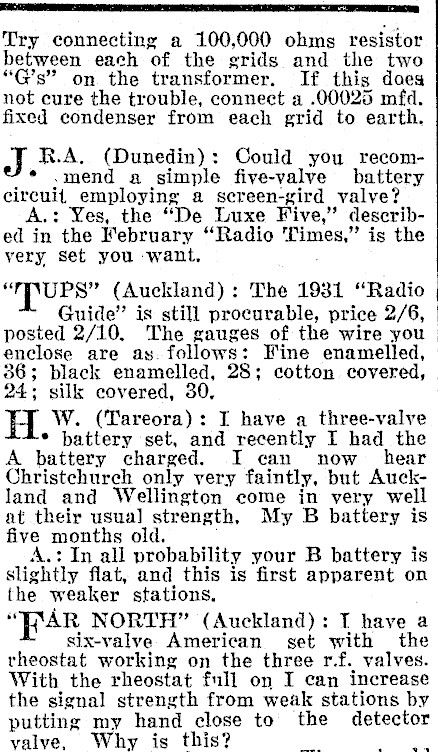

‘| Try connecting a 100,000 ohms resistor between each of the grids and the two "G’s" on the transformer. If this does not cure the trouble, connect a .00025 mfd. fixed condenser from each grid to earth. J R.A. (Dunedin): Could you recom- * .mend a simple five-valve battery circuit employing a screen-gird valve? A.: Yes, the "De Luxe Five," described in the February "Radio Times," is the very set you want, "PUPS" (Auckland) : The 1931 "Radio Guide" is still procurable, price 2/6, posted 2/10. The gauges of the wire you enclose are as. follows: Fine enamelled, 386; black enamelled, 28; cotton covered, 24; silk covered, 30, H W. (Tareora): I have a three-valve * battery set, and recently I had the A battery charged. I can now hear Christchurch only very faintly, but Auckland and Wellington come in very well at their usual] strength, My B battery is five months old. A.: In all probability your B battery is slightly flat, and this is first apparent on the weaker stations. "EXAR NORTH" (Auckland): T have a six-valve American set with the theostat working on the three r.f. valves. With the rheostat full on I can increase the signal strength from weak stations by putting my hand close to the detector yalve, Why is this? 2"

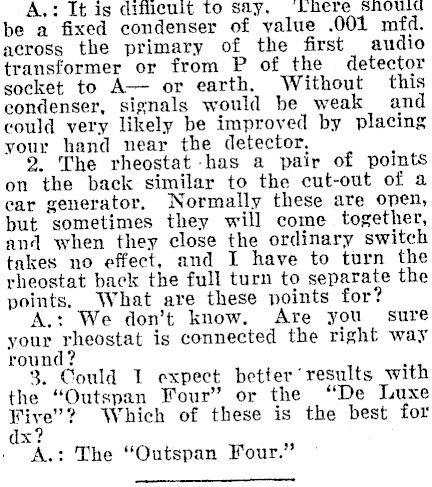

A.: It is duieult to say. Lnere snoulic be a fixed condenser of value .001 mfd. across the primary of the first audio transformer or from P of the detector socket to A- or earth. Without this condenser, signals would be weak and could very likely be improved by placing your hand near the detector, 2 The rheostat has a pair of points on the back similar to the cut-out of a ear generator, Normally these are open, but sometimes they will come together, and when they close the ordinary switch takes no effect, and I have to turn the rheostat back the full turn to separate the points. What are these points for? A.: We don’t know, Are you sure your rheostat is connected the right way round? 3. Could 1 expect better ‘results with the "Outspan Four" or the "De Luxe vive"? Which of these is the best for dx? | Av: The "Outspan Four."

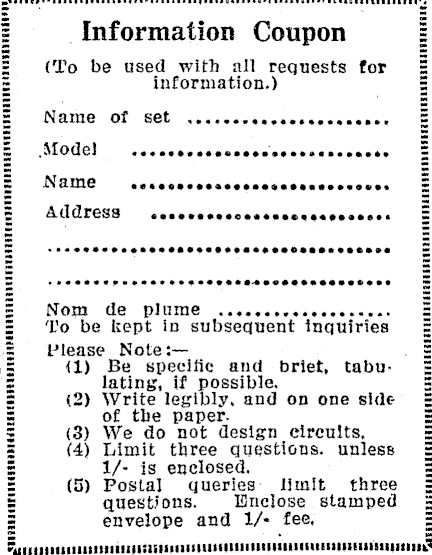

oro Information Coupon (To be used with all requests for information.) Name Of S€t ..csccccavsescccaccecr Mode! eee eeeveseceeensecesascoaces Name POCO CRS HEASESSEsESREBO STONES Address CORO HE SEOCOROELOE EER EOOSS SPCR EH SSE HEHESESSEBSESCHASHSESEEESOSE Nom de plume ..ccccsesceccccces To be kept in subsequent inquiries Please Note:41) Be specific and briet, tabulating, if possible, Write legibly, and on one side of the paper. (83) We do not design circuits, (4) Limit three questions. unless 1/- is enclosed. (5) Postal queries’ Iimit three questions. Enclose stamped envelope and 1/- fee, (2 ~
