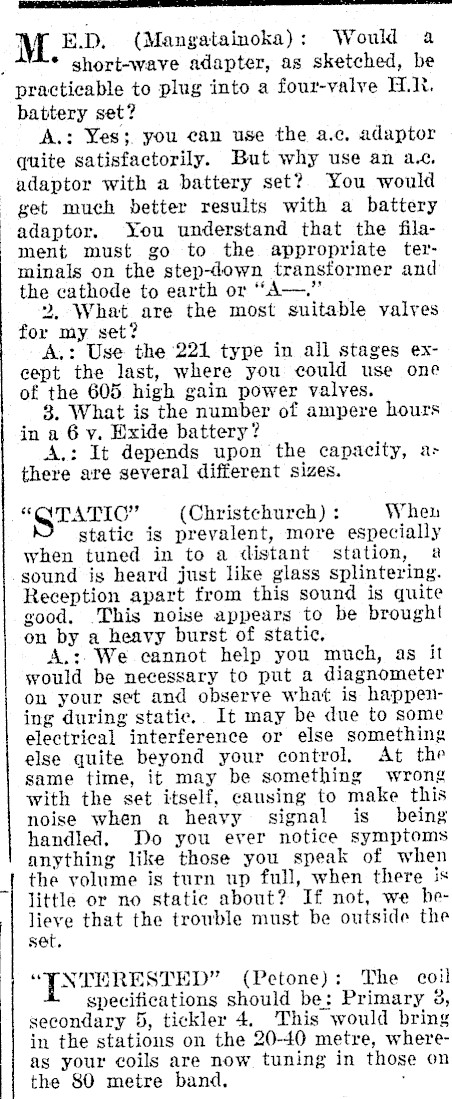

M E.D. (Mangatainoka): Would a * short-wave adapter, as sketched, be practicable to plug into a four-valve H.R. battery set? A.: Yes; you can use the a.c, adaptor quite satisfactorily. But why use an ac. adaptor with a battery set? You would get much better results with a battery adaptor. You understand that the filament must go to the appropriate terminals on the step-down transformer and the cathode to earth or "A-." », What are the most suitable valves for my set? A.: Use the 221 type in all stages except the last, where you could use one of the 605 high gain power valves. 3. What is the number of ampere hours in a 6 y. Exide battery? A.: It depends upon the capacity, a> there are several different sizes. "ATATIO" (Christchurch) : When static is prevalent, more especially when tuned in to a distant station, a sound is heard just like glass splintering. Reception apart from this sound is quite good, .This noise appears to be brough! on by a heavy burst of static. A.: We cannot help you much, as it would be necessary to put a diagnometer on your set and observe what is happening during static. It may be due to some electrical interference or else something else quite beyond your control, At the same time, it may be something wrong with the set itself, causing to make this noise when a heavy signal is being handled, Do you ever notice symptoms anything like those you speak of when the volume is turn up full, when there is little or no static about? If not, we believe that the trouble must be outside the set. "PANTERESTED" (Petone): The coil specifications should be: Primary 8, secondary 5, tickler 4. This would bring in the stations on the 20-40 metre, whereas your coils are now tuning in those on the 80 metre band. ’

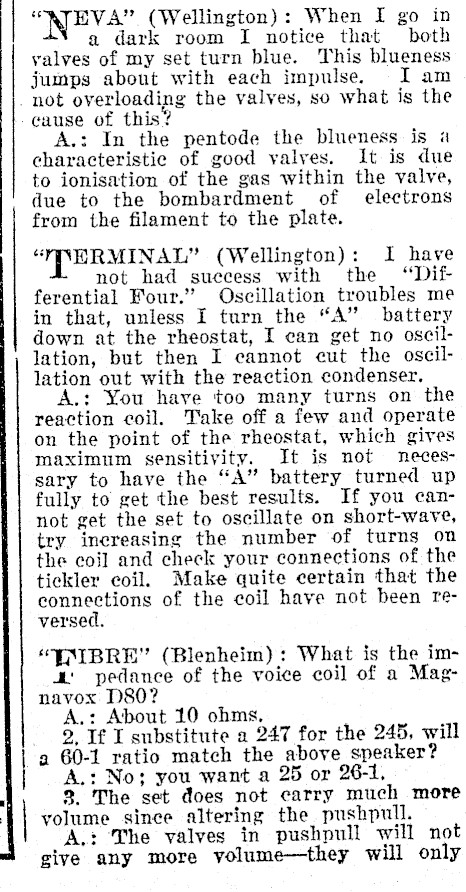

"RTEVA" (Wellington): When I go in a dark room I notice that both valves of my set turn blue. This blueness jumps about with each impulse. I am not overloading the valves, so what is the cause of this? A.: In the pentode the blueness is a characteristic of good valves. It is due to ionisation of the gas within the valve, due to the bombardment of electrons from the filament to the plate. "MNERMINAL" (Wellington): I have not had success with the ‘"Differential Four." Oscillation troubles me in that, unless I turn the "A" battery down at the rheostat, I can get no oscillation, but then I cannot cut the oscillation out with the reaction condenser. A.: You have too many turns on the reaction coil. Take off a few and operate on the point of the rheostat, which gives maximum sensitivity. It is not necessary to have the "A" battery turned up fully to get the best results. If you cannot get the set to oscillate on short-wave, try increasing the number of turns on the coi] and check your connections of the tickler coil. Make quite certain that the connections of the coil have not been reversed. "PAIBRE" (Blenheim): What is the im4 pedance of the voice coil of a Magnavox D80? A.: About 10 ohms, 2 Tf I substitute a 247 for the 245, will 2 60-1 ratio match the above speaker? A.: No; you want a 25 or 26-1. 8 The set does not carry much more volume since altering the pushpull. A.: The valves in pushpull will not give any more volume-they will only

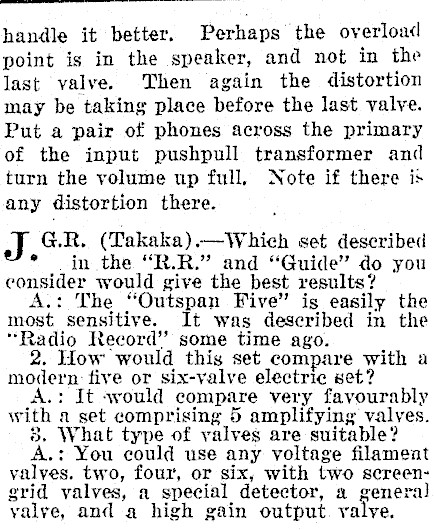

handle it better. Perhaps the overload point is in the speaker, and not in the last valve. Then again the distortion may be taking place before the last valve. Put a pair of phones across the primary of the input pushpull transformer and turn the volume up full, Note if there is any distortion there. G.R. (Takaka).-Which set described in the "R.R." and "Guide" do you consider would give the best results? A.: The "Outspan Five" is easily the most sensitive. It was described in the "Radio Record’ some time ago. 2. Ilow would thig set compare with a modern: five or six-valve electric set? A.: It would compare very favourably with a set comprising 5 amplifying valves. 3. What type of valves are suitable? A.: You could use any voltage filament valves. two, four, or six, with two screengrid valves, a special detector, a general yalye, and a high gain output. valve.

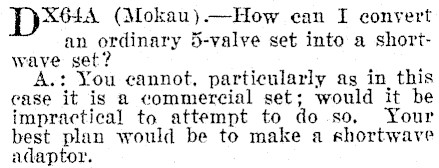

D*644 (Mokau).-How ean I convert an ordinary 5-valye set into a shortwave set? A.: You cannot, particularly ag in this case it is a commercial set; would it be impractical to attempt to do so, Your best plan would be to make a shortwave adaptor.

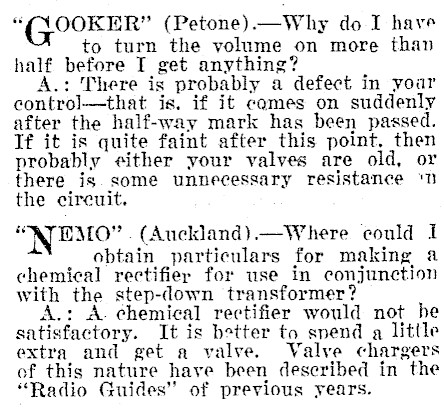

"(\OOKER" (Petone).-Why do I have to turn the volume on more than half before I get anything? A.: There is probably a defect in yoar contro]-that is. if it cames on suddenly after the half-way mark has been passed. Tf it is quite faint after this point. then probably either your valves are old, or there is. some unnecessary resistance ‘1 the circuit. *NTEMO". (Auckland).-Where could I obtain particulars for making a chemical rectifier for use in conjunction with the step-down transformer? A.: A. chemical rectifier would not he satisfactory. It is better to snend a little extra and get a valve. Valve chargers of this nature have been described in the "Radio Guides" of previous years.

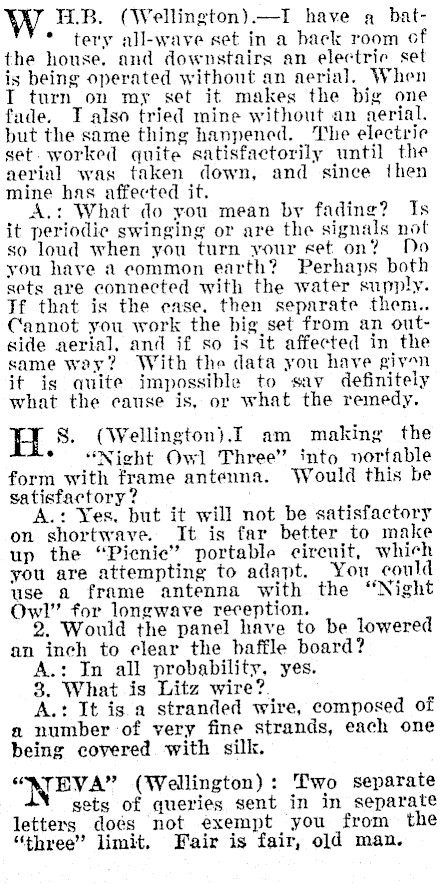

T.B. (Wellington).-I have a battery all-wave set in a back room of the house. and downstairs an electric set is being operated without an aerial. When T turn on my set it makes the big one fude. T also tried mine without an aerial. but the same thing hanpened. The electric set. worked quite satisfactorily until the aerinl was taken down, and since then mine has affected it. A.: What do you mean by fading? Is it periodic swinging or are the signals not so loud when you turn your set on? Do you haye a common earth? Perhaps both sets are connected with the water supply. Tf that is the ease, then separate then... Cannot you work the big set from an outside aerial, and if so is it affected in the same way? With the data you have given it is auite impossible to say definitely what the cause is, or what the remedy. H. 8. (Wellington).I am making the * "Night Owl Three" into vortable form with frame antenna. Would this be satisfactory? A.: Yes, but it will not be satisfactory on shortwave. It is far better to make up the "Picnic" portable cirenit, which you are attempting to adapt. You could use a frame antenna with the "Night Owl" for longwave reception. 2. Would the panel have to be lowered an inch to clear the baffle board? A.: In all probability, yes. 8. What is Litz wire?. A.: It is a stranded wire, composed of a number of very fine strands, each one being covered with silk. "ATEVA" (Wellington): Two separate sets of queries sent in in separate letters doés not exempt you from the "three" limit, Fair is fair, old man.

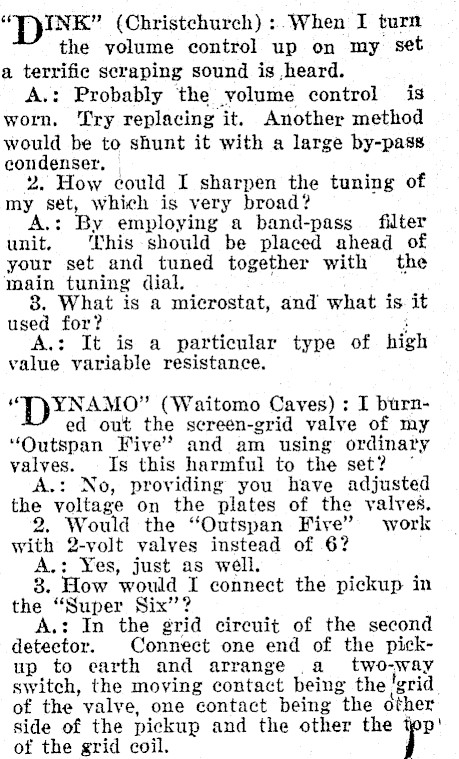

INK" (Christchurch) :.When I turn the yolume control up on my set a terrific scraping sound is ,heard. A.: Probably the volume control is worn. Try replacing it. Another method would be to shunt it with a large by-pass condenser, 2. How could I sharpen the tuning of my set, which is very broad? : By employing a band-pass filter unit, ‘Chis should be placed ahead of your set and tuned together with the main tuning dial. 8. What is a microstat, and what is. it used for? A.: It is a particular type of high value variable resistance. YNAMO" (Waitomo Caves) : I burned out the screen-grid yalye of my "Outspan Five’ and am using ordinary valves. Is this harmful to the set? A.: No, providing you have adjusted the voltage on the plates of the valves. 2. Would the "Outspan Five" work with 2-volt valves instead of 6? A.: Yes, just as well. 3. How would F connect the pickup in the "Super Six"? A.: In the grid circuit of the second detector. Connect one end of the pickup to earth and arrange a two-way switch, the moving contact being the of the valve, one contact being "the other side of the pickup and the other the tpp' of the grid coil. y

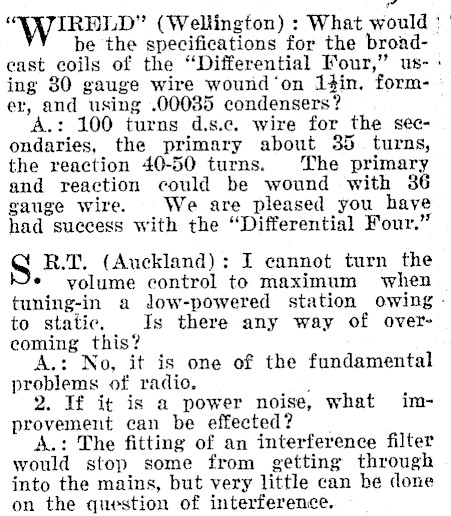

" IRHLD" (Wellington) : What would : be the specifications for the broadcast coils of the "Differential Four," us-: ing 30 gauge wire wound ‘on itin. former, and using .00035 condensers? A.: 100 turns d.is.c. wire for the secondaries, the primary about 35. turns, the reaction 40-50 turns. The primary and reaction could be wound with 36 gauge wire. We are pleased you have had suecess with the "Differential Four." S R.T. (Auckland): I eannot turn the ¢ volume control to maximum when tuning-in a dow-powered station owing to static. Is there any way of overcoming this? A.: No, it is one of the fundamental problems of radio. . 2. If it is a power noise, what improvement can be effected? A.: The fitting of an interference filter would stop some from getting through into the mains, but very little can be done on the question of interference.

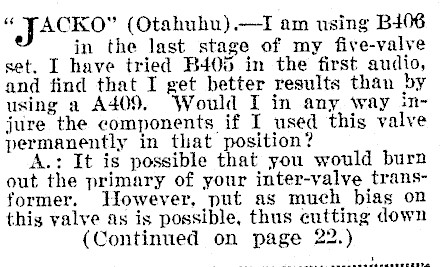

" TACKO" (Otahuhu).-I am using B406 in the last stage of my five-valve set. I have tried B405 in the first audio, and find that I get better results than by using a A409. Would I in any way injure the components if I used this valve permanently in that position? A.: It is possible that you would burn out the primary of your inter-valve transformer. However, put as much bias on thig yalve as is possible, thus cutting down (Continued on page 22.) ’ ee dd ee wananneeenta

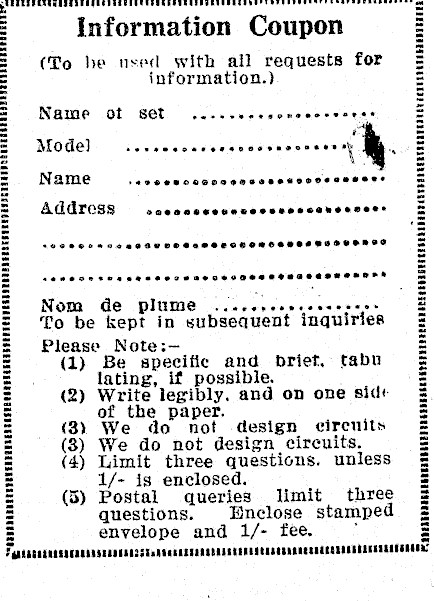

Information Coupon (To he used with all requests for information.) Name of SCT ....sececcnccorvcrss Mode) soccocccdousvessacoocoen " Name secccccecpeccccesecocecnnese Address PTITT ITI iii 8000 0o 86s oO OSE OOSESSESSCOROSHOSSISOSNEG PWEPPURUPET IOC eerie Nom de plume ...cepececeecesees To be kept in subsequent inquiries Please Note:(1) Be specific and brief, tabu lating, if possible. (2) Write legibly, and on one sid¢ of the paper. (3) We do not design circuits (8) We do not design circuits. (4) Limit three questions. unless 1/- is enclosed. (5) Postal queries limit three questions. Enclose stamped envelope and 1/- fee. . VE svvyewv se esr vores

Questions and Answers

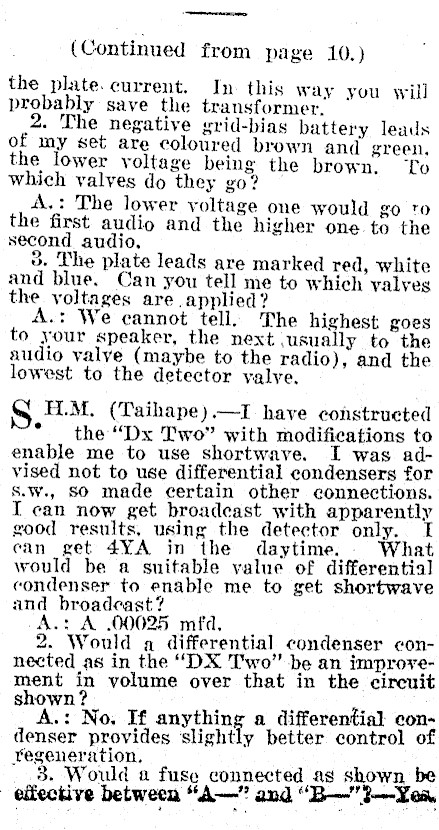

(Continued from page 10.) the plate. current. In. this Way you will probably save the transformer. 2. The negative grid-bias battery leads of my set are coloured brown and green, the lower voltage being the brown. To which valves do they go? A.: The lower voltage one would go to the first audio and the higher one. to the second audio, 3. The plate leads are marked red, white and blue. Can you tell me to which valves the voltages are applied? A.: We cannot tell. The highest goes to your speaker, the next ,usually to the audio valye (maybe to the radio), and the lowest to the detector yalye. S ELM. (Taihape).-I have constructed * the "Dx Two" with modifications to enable me to use shortwave. I was advised not to use differential condensers for s.w., SO made certain other connections. I can now get broadcast with apparently good results, using the detector only. can get 4YA in the daytime. What would be a suitable value of differential condenser to enable me to get shortwave and broadcast? A.: A 00025 mfd,. 2. Would a differential condenser connected as in the "DX Two" be an improyement in volume over that in the cireuit shown? A.: No. If anything a differential condenser provides slightly better control of regeneration, 3. Would a fuse connected as shown, be elfective between "A-" and "B-"}-Yoa
