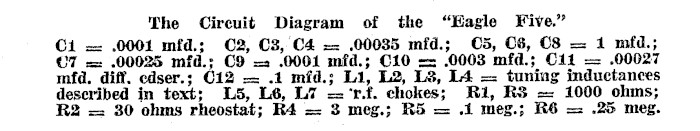

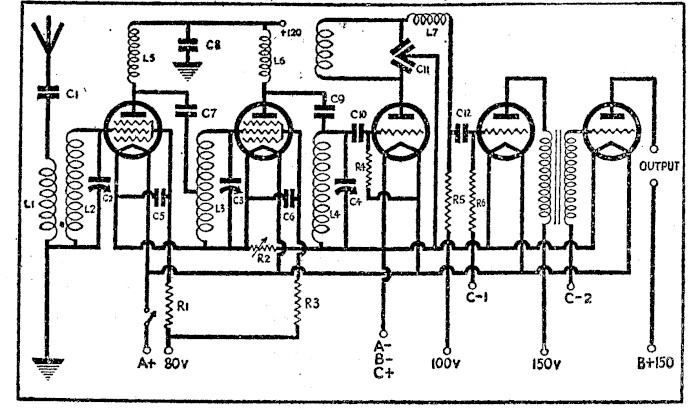

The Circuit Diagram of the "Eagle Five." C1 = .0001 mfd.; C2, C3, C4 == .00035 mfd.; C5, C6, C8 == 1 mfd.; C7 = .00025 mfd.; C9 = .0001 mfd.; C10 = .0003 mfd.; C11 == .00027 mfd. diff. cdser.; 612 == .1 mfd.; L2, L3, L4 = tuning inductances described in text; L5, 6, LI == r.f. chokes; R1, R3 = 1000 ohms; R2 = 30 ohms rheostat; RA == 3 meg.; R5 == .1 meg.; R6 = .25 meg.
