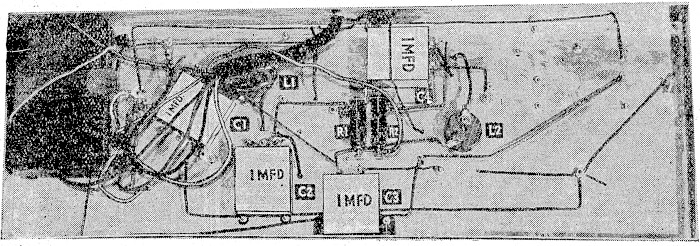

An under-baseboard view of the completed receiver. L1 and 2 are r.f. chokes in the s.g. plate leads, and R1 and 2 decoupling resistances in the screening-grid leads.
