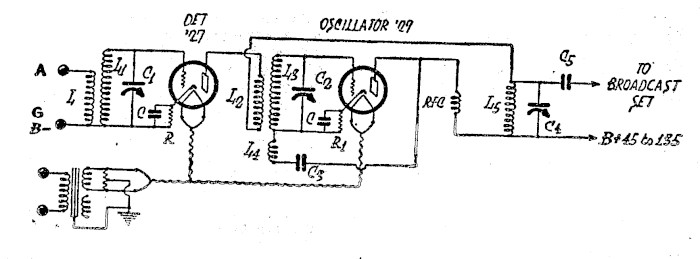

Circuit Diagram of S.W. Adapter.

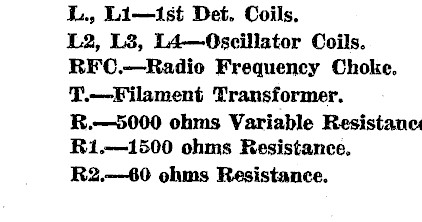

L., L1—1st Det. Coils. L2, L3, L4—Oscillator Coils. RFC.—Radio Frequency Choke. T.—Filament Transformer. R.—5000 ohms Variable Resistance R1.—1500 ohms Resistance. R2.—60 ohms Resistance.

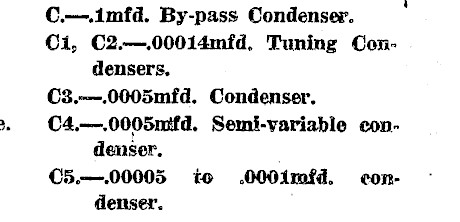

C.—.1mfd. By-pass Condenser. C1, C2.—.00014mfd. Tuning Condensers, C3.—.0005mfd. Condenser. C4.—.0005mfd. Semi-variable condenser. C5.—.00005 to .0001mfd. condenser.
