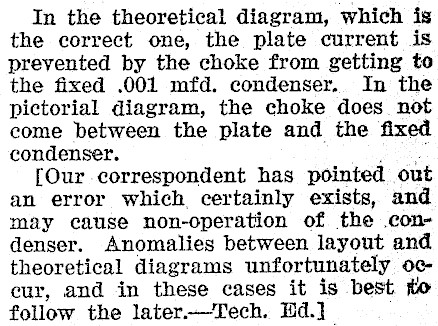

In the theoretical diagram, which is the correct one, the plate current is prevented by the choke from getting to the fixed .001 mfd. condenser. In the pictorial diagram, the choke does not come between the plate and the fixed condenser. p heke [Our correspondent has pointed out an error which certainly exists, and may cause non-operation of the .condenser. Anomalies between layout and theoretical diagrams unfortunately occur, and in these cases it is best to follow the later.-Tech. Hd.]
