List of Components for the "Outspan Five"

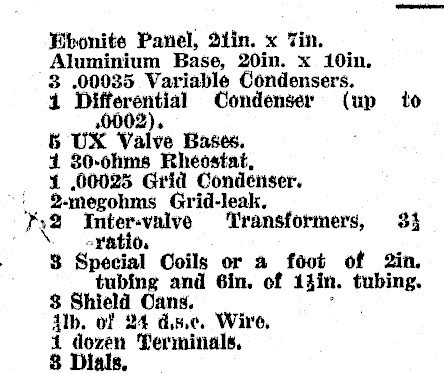

Ebonite Panel, 21in. x Tin. Aluminium Base, 20in. x 10in. 3 .00035 Variable Condensers. 1 Ditecential Condenser (up to 0002). 6 UX Valve Bases. 1 80-ohms Rheostat, 4 .60025 Grid Condenser. Grid-leak. * 9 Inter-valve Transformers, $4 o¥atio. 3 Coils or a foot of 2in. tubing and 6in. of igin. tubing. $3 Shield Oans. ilb. of 24 dis.c. Wire, 1 dozen Terminals, 8 Dials

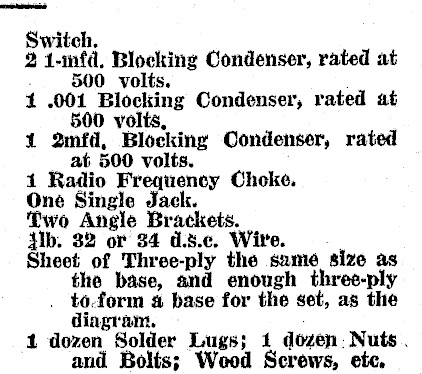

Switch. 2 1-mfd, Blocking Condenser, rated at 500 volts. 1 .001 Blocking Condenser, rated at 500 volts, 1 2mfd, Blocking Oondenser, rated at 500 volts. 1 Radio Frequency Choke. Oné Single Jack. Two Angle Brackets. db. 32 or 34 d.s.c. Wire. Sheet of Three-ply the same size as the base, and enough three-ply . toform & base for the set, as the diagram. 1 dozen Solder Lugs; 1 dozen: Nuts . and Bolts; Weod Screws, etc.
