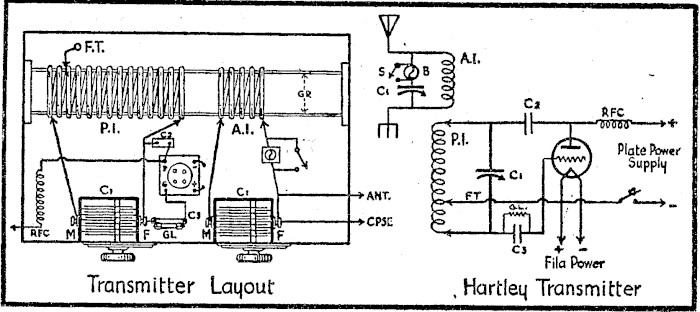

HARTLEY TRANSMITTING CIRCUIT.

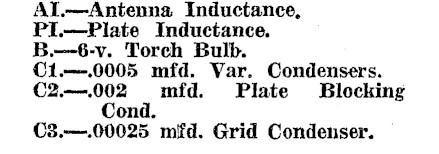

Al.—Antenna Inductance. PI.—Plate Inductance. B.—6-v. Torch Bulb. C1.—.0005 mfd. Var. Condensers. C2.—.002 mfd. Plate Blocking Cond. C38.—.00025 mfd. Grid Condenser.

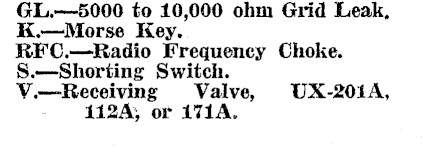

GL.—5000 to 10,000 ohm Grid Leak. K.—Morse Key. RFC.—Radio Frequency Choke. S.—Shorting Switch. V.—Receiving Valve, UX-201A, 112A, or 171A.
