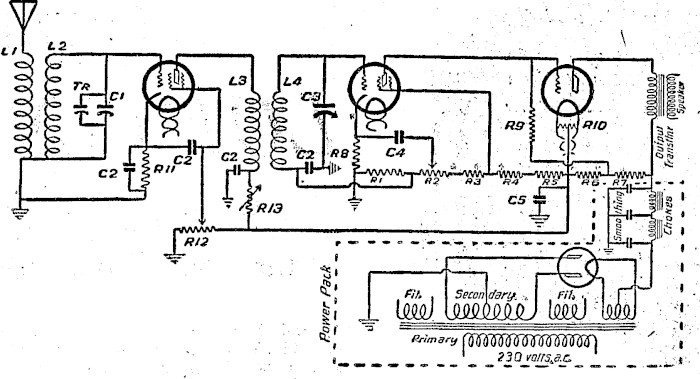

Theoretical Diagram.—The key to the parts not mentioned in the list are: R1, 425 ohms; R2, 200 ohms pot.; R3, 775 ohms; R4, 4700 ohms; RS, 25,000 ohms (not critical); R6, 100,000 ohms (not critical); R8, 50,000 ohms; R9, 500,000 ohms; R10, 20 ohms (not critical); C4, C5, 1mfd.
