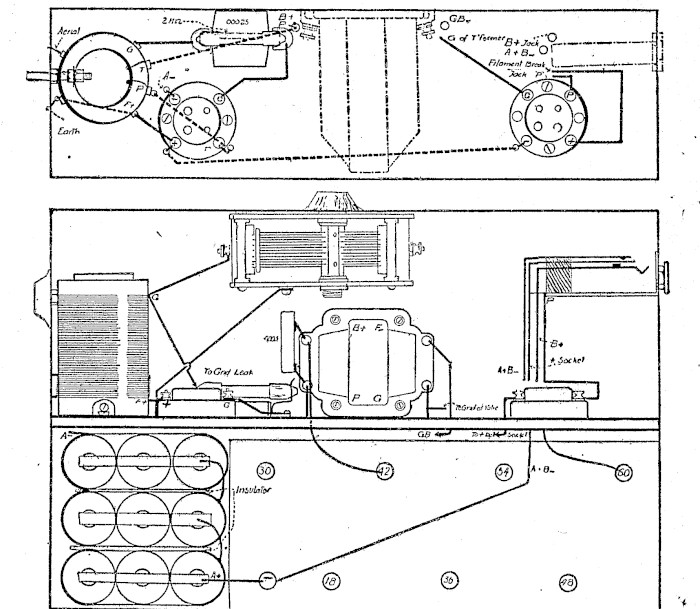

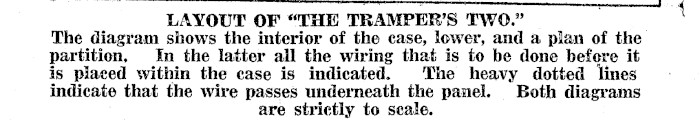

LAYOUT OF "THE TRAMPER'S TWO." The diagram shows the interior of the case, lower, and a plan of the partition. In the latter all the wiring that is to be done before it is placed within the case is indicated. The heavy dotted lines indicate that the wire passes underneath the panel. Both diagrams are strictly to scale.
