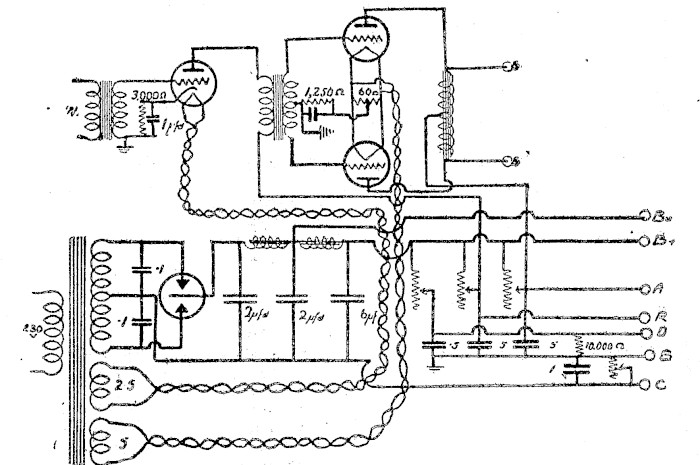

In the power amplifier described last week the connection between the transformer end and the valve electrode was shown as between the electrode and the common positive. The above is the corrected diagram.
