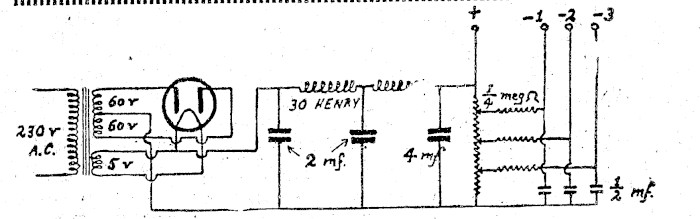

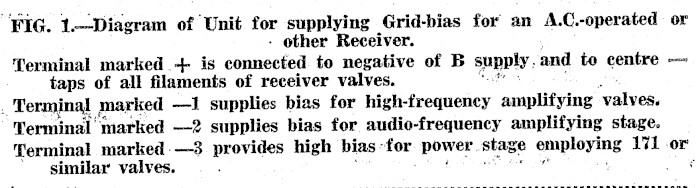

FIG. 1.—Diagram of Unit for supplying Grid-bias for an A.C.-operated or other Receiver. Terminal marked + is connected to negative of B supply and to centre — taps of all filaments of receiver valves. Terminal marked —1 supplies bias for high-frequency amplifying valves. Terminal marked —2 supplies bias for audio-frequency amplifying stage. Terminal marked —3 provides high bias for power stage employing 171 or similar valves.
