"Queries Answered Here"

Problems Raised at the Exhibition

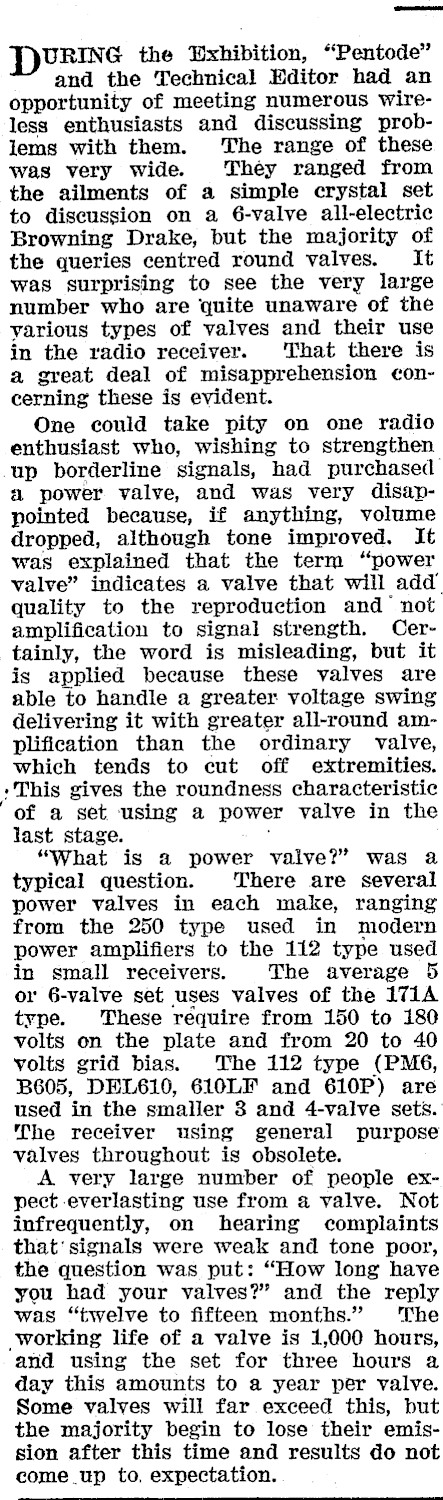

DFURING the Wxhibition, "Pentode" and the Technical Editor had an opportunity of meeting numerous wireless enthusiasts and discussing problems with them. The range of these was very wide. They ranged from the ailments of a simple crystal set to discussion on a 6-valve all-electric Browning Drake, but the majority of the queries centred round valves. It was surprising to see the very large number who are quite unaware of the yarious types of valves and their use in the radio receiver. That there is a great deal of misapprehension concerning these is evident. One could take pity on one radio enthusiast who, wishing to strengthen up borderline signals, had purchased a power valve, and was very disappointed because, if anything, volume dropped, although tone improved. It was explained that the term "power valve" indicates a valve that will add’ quality to the reproduction and not amplification to signal strength. Certainly, the word is misleading, but it is applied because these valves are able to handle a greater voltage swing delivering it with greater all-round amplification than the ordinary valve, which tends to cut off extremities. : This gives the roundness characteristic of a set using a power valve in the last stage. "What is a power valve?" was a typical question. There are several power valves in each make, ranging from the 250 type used in modern power amplifiers to the 112 type used in small receivers. The average 5 or 6-valve set uses valves of the 171A type. These require from 150 to 180 volts on the plate and from 20 to 40 volts grid bias. The 112 type (PM6, B605, DEL610, 610LF and 610P) are used in the smaller 3 and 4-valve sets. The receiver using general purpose valves throughout is obsolete. A very large number of people expect everlasting use from 4 valve. Not infrequently, on hearing complaints that' signals were weak and tone poor, the question was put: "How long have you had your valves?" and the reply was "twelve to fifteen months." The working life of a valve is 1,000 hours, and using the set for three hours 2 day this amounts to a year per valve. Some valves will far exceed this, but the majority begin to lose their emission after this time and results do not come _up to. expectation.

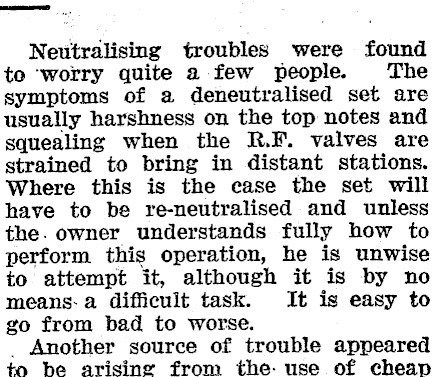

Neutralising troubles were found to ‘worry quite a few people. The symptoms of a deneutralised set are usually harshness on the top notes and squealing when the R.F. valves are strained to bring in distant stations. Where this is the case the set will have to be re-neutralised and unless the. owner understands fully how to perform this operation, he is unwise to attempt it, although it is by no means: a difficult task. It is easy to go from bad to worse. _ Another source of trouble appeared to be arising from the: use of cheap

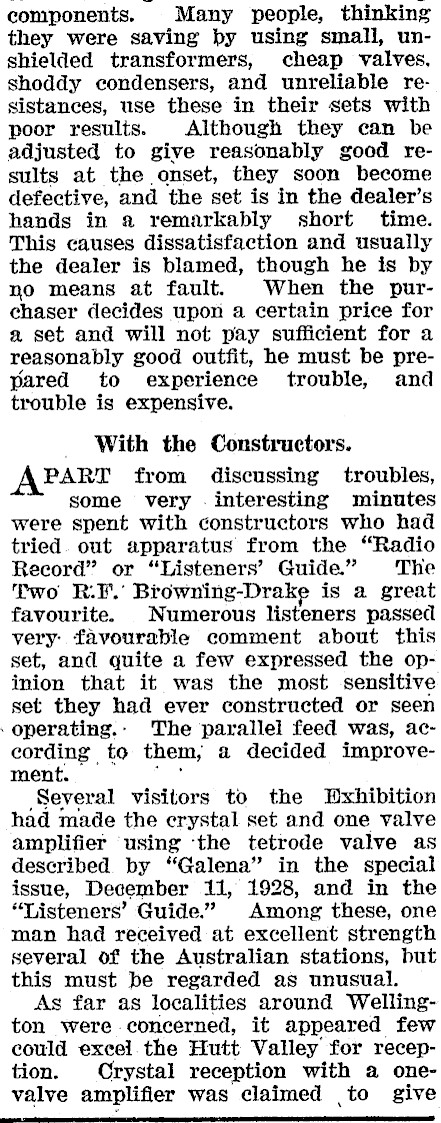

components, Many people, thinking they were saving by using small, unshielded transformers, cheap valves, shoddy condensers, and unreliable resistances, use these in their sets with poor results. Although they can be adjusted to give reasonably good results at the onset, they soon become defective, and the set is in the dealer’s hands in a remarkably short time. This causes dissatisfaction and usually the dealer is blamed, though he is by no means at fault. When the purchaser decides upon a certain price for a set and will not pay sufficient for a reasonably good outfit, he must be prepared to experience trouble, and trouble is expensive. With the Constructors. APART from discussing troubles, some very . interesting minutes were spent with constructors who had tried. out apparatus from the "Radio Record" or ""isteners’ Guide." The Two RF.’ Browning-Drake is a great favourite. Numerous listeners passed very’ favourable comment about this set, and quite a few expressed the opinion that it was the most sensitive set they had ever constructed or seen -operating.- The parallel feed was, according to them, a decided improvement. "st Several visitors to the Bxhibition had made the crystal set and one valve amplifier ‘using ‘the tetrode valve as described by "Galena" in the special issue, December 11, 1928, and in the "Listeners’ Guide." Among these, one man had received at excellent strength several of the Australian stations, but this must be regarded as unusual. As far as localities around Wellington were concerned, it appeared few could excei the Hutt Valley for reception. Crystal reception with a onevalve amplifier was claimed to give o-_

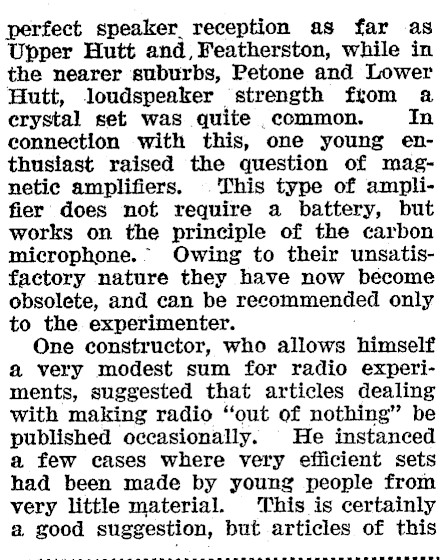

perfect speaker reception as far as Upper Hutt and, Featherston, while in the nearer suburbs, Petone and Lower Hutt, loudspeaker strength from a crystal set was quite . common. In connection with this, one young enthusiast raised the question of magnetic amplifiers, This type of amplifier does not require a battery, but works on the principle of the carbon microphone.* Owing to their unsatisfactory nature they have now become obsolete, and can be recommended only to the. experimenter. One constructor, who allows himself a very modest sum for radio experiments, suggested that articles dealing with making radio "out of nothing" be published occasionally. He instanced a few cases where very efiicient sets had been made by young people from very little material. This is certainly a good suggestion, but articles of this

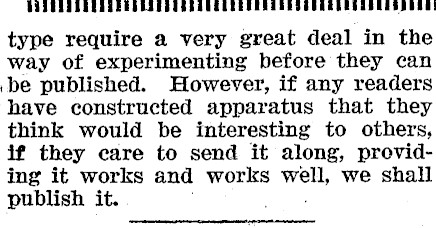

SUPERS RREAEERRRSESCRR RESET ESE A ERASER ERR S AS REE See! type require a very great deal in the way of experimenting before they can ‘be published. However, if any readers have constructed apparatus that they think would be interesting to others, if they care to send it along, providing it works and works well, we shall publish it.
