A Corner for Beginners

By

Observer

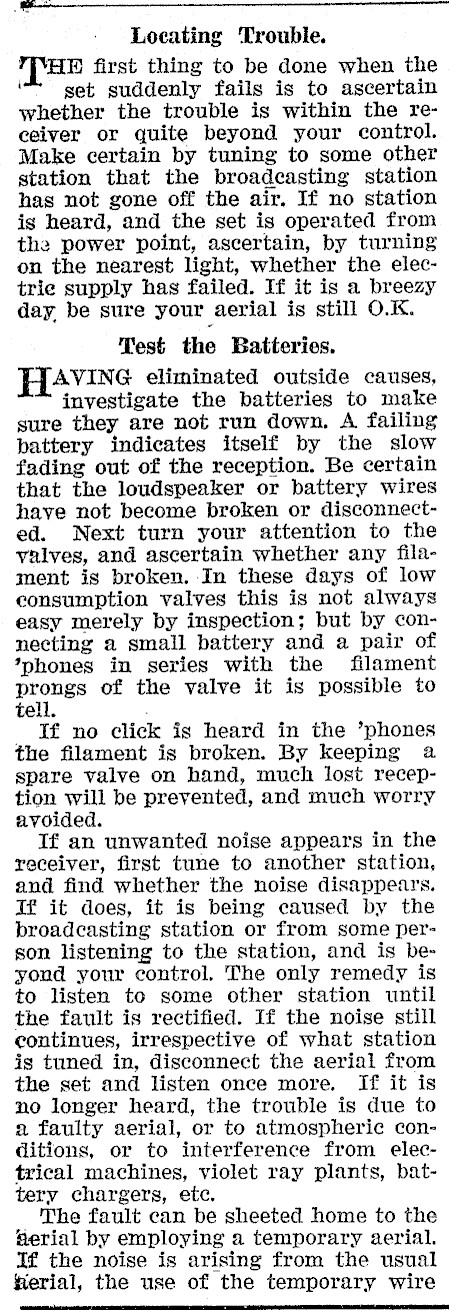

Locating Trouble. 'THE first thing to be done when the ‘ set suddenly fails is to ascertain whether the trouble is within the receiver or quite beyond your control. Make certain by tuning to some other station that the broadcasting station has not gone off the air. If no station is heard, and the set is operated from the power point, ascertain, by turning on the nearest light, whether the electrie supply has failed. If it is a breezy day be sure your aerial is still O.K. Test the Batteries. AVING eliminated outside causes, investigate the batteries to make sure they are not run down. A failing battery indicates itself by the slow fading out of the reception. Be certain that the loudspeaker or battery wires have not become broken or disconnected. Next turn your attention to the valves, and ascertain whether any filament is broken. In these days of low consumption valves this is not always easy merely by inspection; but by connecting a small battery and a pair of *phones in series with the filament prongs of the valve it is possible to _ If no click is heard in the *phones the filament is broken. By keeping a spare valve on hand, much lost reception will be prevented, and much worry avoided. If an unwanted noise appears in the receiver, first tune to another station, and find whether the noise disappears. If it does, it is being caused by the broadcasting station or from some person listening to the station, and is beyond your control. The only remedy is to listen to some other station until the fault is rectified. If the noise still continues, irrespective of what station is tuned in, disconnect the aerial from the set and listen once more. If it is no longer heard, the trouble is due to a faulty aerial, or to atmospheric conditions, or to interference from electrical machines, violet ray plants, battery chargers, etc. The fault can be sheeted home to the Serial by employing a temporary aerial. If the noise is arising from the usual fierial, the use of the temporary wire

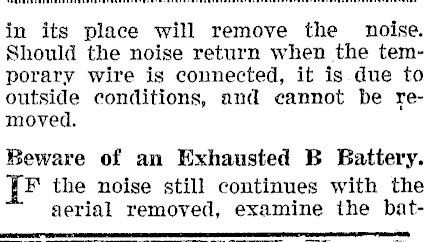

in its place will remove the noise. Should the noise return when the temporary wire is connected, it is due to outside conditions, and cannot be removed. Beware of an Exhausted B Battery. F the noise still continues with the aerial removed, examine the batcn

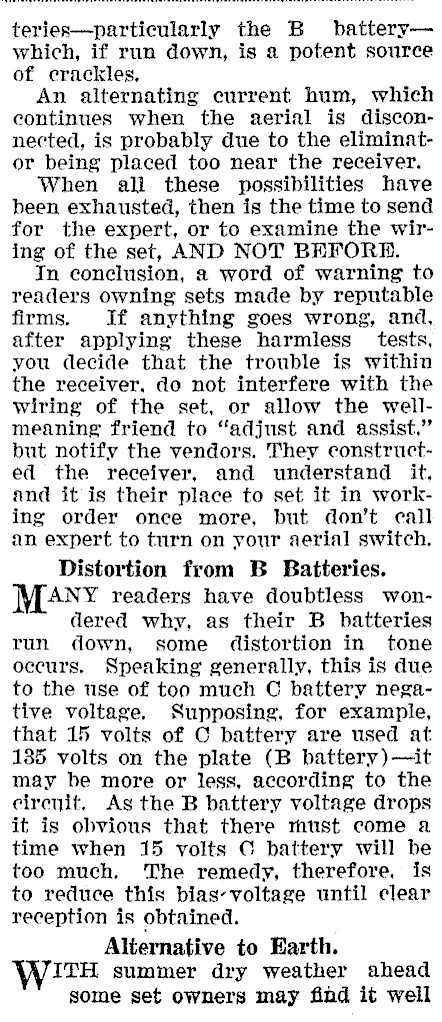

teries-particularly the B_ batterywhich, if run down, is a potent source of crackles, An alternating current hum, which eontinues when the aerial is disconnected, is probably due to the eliminator being placed too near the receiver. When all these possibilities have been exhausted, then is the time to send for the expert, or to examine the wiring of the set, AND NOT BEFORE. In conclusion, a word of warning to readers owning sets made by reputable firms. If anything goes wrong, and, after applying these harmless _ tests, you decide that the trouble is within the receiver, do not interfere with the wiring of the set, or allow the wellmeaning friend to "adjust and assist." but notify the vendors. They constructed the receiver, and understand it, and it is their place to set it in working order once more, but don’t call an expert to turn on your aerial switch. Distortion from B Batteries. ANY readers have doubtless wondered why, as their B batteries run down, some distortion in tone occurs. Speaking generally, this is due to the use of too much C battery negative voltage. Supposing, for example, that 15 volts of C battery are used at 135 volts on the plate (B battery)-it may be more or less, according to the cirenit. Ags the B battery voltage drops it is obvious that there must come a time when 15 volts © battery will be too much. The remedy, therefore, is to reduce this bias- voltage until clear reception is obtained. Alternative to Earth. ITH summer dry weather ahead some set owners may find it weil

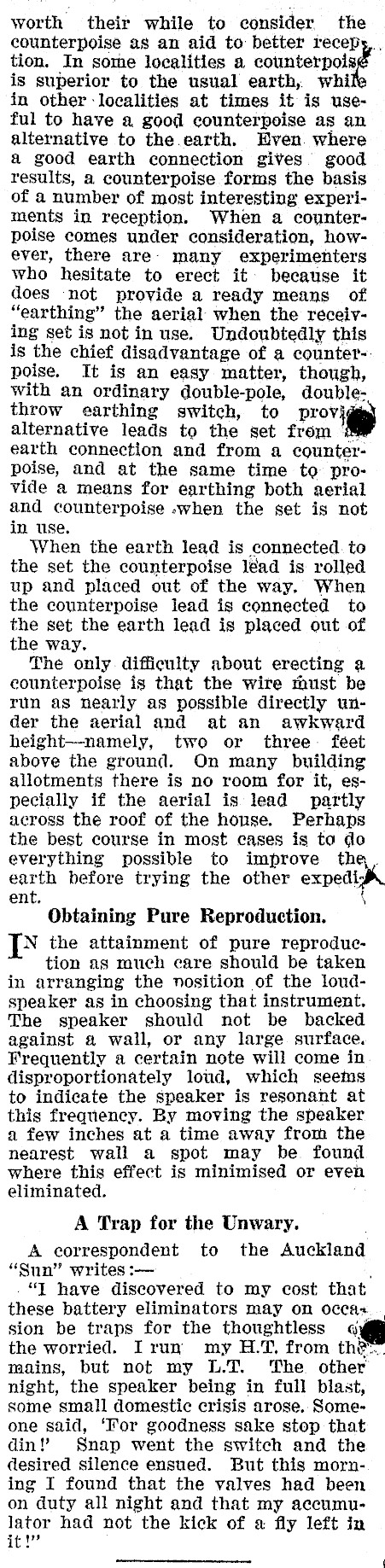

worth their while to consider the counterpoise as an aid to better recep, . tion. In some localities a is superior to the usual earth, wh in other localities at times it is useful to have a good counterpoise as an alternative to the earth. Hven where a good earth connection gives. good results, a counterpoise forms the basis of a number of most interesting experiments in reception. When a counterpoise comes under consideration, however, there are- many experimenters who hesitate to erect it because it does not provide a ready means of "earthing" the aerial when the receiving set is not in use. Undoubtedly this is the chief disadvantage of a counter-. poise. It is an easy matter, though, with an ordinary double-pole, doublethrow earthing switch, to prov} : alternative leads to the set from & earth connection and from a counterpoise, and at the same time to provide a means for earthing both aerial and counterpoise -when the set is not in use. When the earth lead is connected. to the set the counterpoise lead is rolled up and placed out of the way. When the counterpoise lead is connected to the set the earth lead is placed out of the way. The only. difficulty about erecting a counterpoise is that the wire thust be run as nearly as possible directly under the aerial and at an awkward height-namely, two or three- féet above the ground. On many building allotments there is no room for it, especially if the aerial is lead partly across the roof of the honse. Perhaps the best course in most cases is to do everything possible to improve the. earth before trying the other expedi: ent. Obtaining Pure Reproduction. TD the attainment of pure reproduction as much care should be taken in arranging the nosition of the loudspeaker as in choosing that instrument. The speaker should not be backed against a wall, or any large surface. Frequently a certain note will come in disproportionately loud, which seems to indicate the speaker is resonant at this frequency. By moving the speaker a few inches at a time away from the nearest wall a spot may be. found where this effect is minimised or even eliminated. A Trap for the Unwary. A correspondent to the Auckland "Sun" writes :- "T have discovered to my cost that these battery eliminators may on occas. sion be traps for the thoughtless gy the worried. Irun my H.T, from the mains, but not my L.T. The other night, the speaker being in full blast, some small domestic crisis arose. Someone said, ‘For goodness sake stop that din!’ Snap went the switch and the desired silence ensued. But this morning I found that the valves had been on duty all night and that my accumulator had not the kick of a fly left in it!"

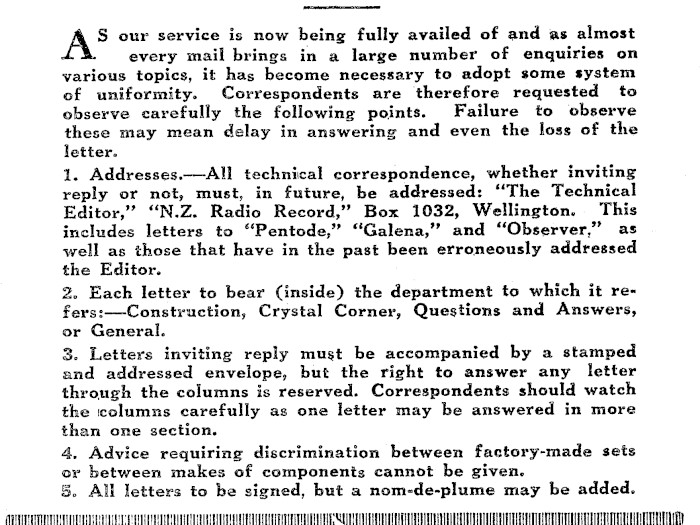

Important Notice Regarding Enquiries
