The Mystery of the Receiver

Radio Record, Volume II, Issue 25, 4 January 1929, Page 26

The Mystery of the Receiver

An Old Subject from a New Angle

(By

Pentode

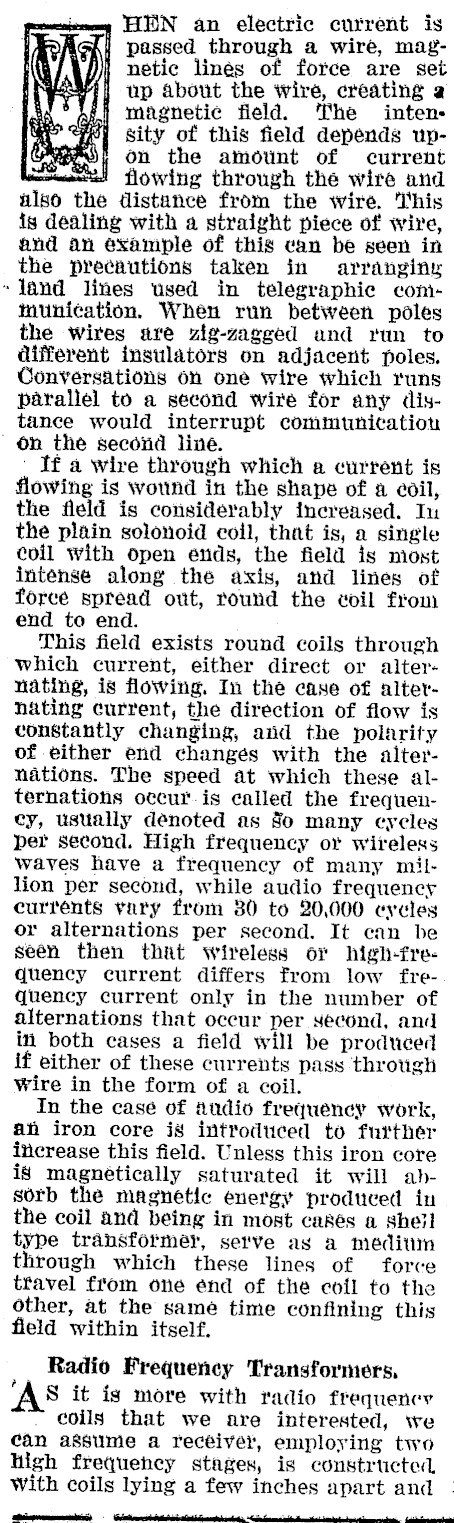

HEN an electric current is 1 passed through a wire, mag- | netic lines of force are set il up about the wire, creating a fj) magnetic field. The intendi sity of this field depends up- , on the amount of current flowing through the wire and also the distance from the wire. This is dealing with a straight piece of wire, and an example of this can be seen in the precautions taken in arranginy ~lJand lines used in telegraphic communication. When run between poles the wires are zig-zagged and run to different insulators on adjacent poles. Conversations on one wire which runs parallel to a second wire for any distance would interrupt communication ' On the second line. ' If a wire through which a current is flowing is wound in the shape of a coil, the fleld is considerably increased. In the plain solonoid coil, that is, a single coil with open ends, the field is most intense along the axis, and lines of force spread out, round the ¢eoil from end to end. This field exists round coils through which current, either direct or alter nating, is flowing. In the cane of alter- nating current, the direction of flow is constantly changing, and the polarity of either end changés with the alternations. The speed at which these alternations occur. is called the frequency, usually denoted as So many cycles per second. High frequency or wireless waves have a frequency of many million per second, while audio frequency currents vary from 80 to 20,000 cycles or alternations per second. It can be seén then that wireless or high-fre-quency current differs from low frequency current only in the number of alternations that occur per second, and in both cases a field will be produced if either of these currents pass through wire in the form of a coil. In the case of Audio frequency work, an iron core is introduced to further increase this field. Unless this iron core iS magnetically saturated it will absorb the magnetic energy produced in the coil and being in most cakes a sheil type transformer, sel've as a medium through which these lines of force travel from one énd of the coil to the other, at the samé time confining this field within itself. Radio Frequency Transformers, ‘AS it is more with radio frequency . Coils that we are interested, we can assume a recéiver, employing two high frequency stages, is constructed | With coils lying a few inches apart and | ene ‘ctinlaaainity "ne pe oer ee iene:

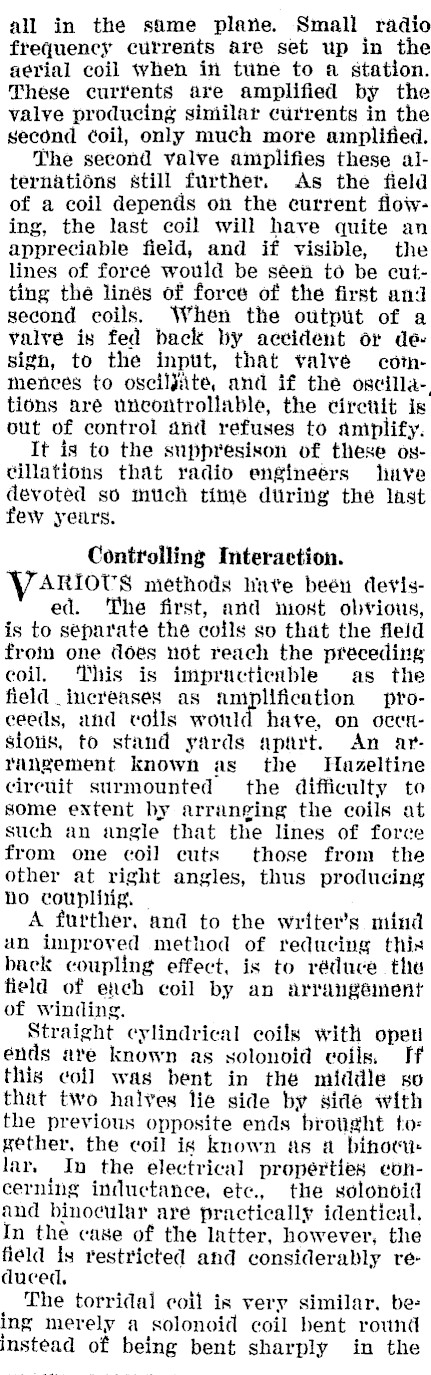

all in the same plane. Small radio frequency currents are set up in the aerial coil when in tune to a station. These curtents are amplified by the valve producing similar cutrents in the second ¢oil, only much more amplified. The second valve amplifies these alternations still further. As the field of a coil depends on the current flowing, the last coil will have quite an appreciable field, and if visible, the lines of force would be séen to be cutting thé linés of force of the first and second coils. When the output of a valve is fed back by accident or design, to the input, that valve cotnmences to osciljite, and if the oscilla-, tions aré uncontrollable, the circuit is out of control and refuses to amplify. It is to the suppresison of these oxcillations that radio engineérs lhuve devoted so much time during the last few years. Controlling Interaction. VAariovs méthods have beén devised. The first, and mioxt obvious, is to separate the coils so that the fleld from one doés not reach the preceding coil. This is impracticuble as the field increases as amplification proceeds, and coils would have, on ocensious, to stand yards apart. An arrangement known as the Hazeltine cireuit surmounted the difficulty to some extent by arranging the coils at such an angle that the lines of force from one coil cuts those from the other at right angles, thus producing no couplitig. A further, and to the writer's mind an improved method of reducing this back coupling effect, is to réduce the field of exch coil by an arrangement of winding. Straight cylindrical coils with opeti ends ate known as solonoid coils, If this coil was bent in the middle so that two halves lie side by side with the previous opposite ends brought to« gether, the coil is known as a bihocu: lar. In the electrical properties eoncerning inductance, etc, the solonoid and binocular are practically identical. In the case of the latter, however, the field is restricted and considerably reduced. The torridal coil is very similar, being merely a solonoid coil bent round instead of being bent sharply in the

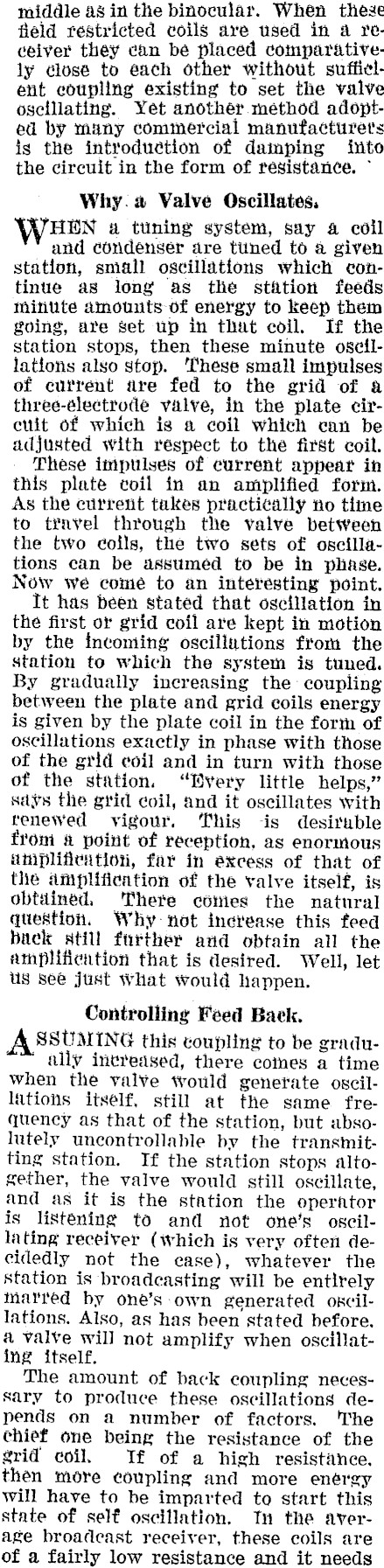

middie 4s in the binocular. When these field restricted coils are used in a receiver they can be placed comparatively elosé to éach other without suffielent coupling existing to set the valve oscillating. Yet anothér method adopted by many commercial manufacturets is the introduction of damping into the circuit in the form of résistance. ~ Why.a Valve Oscillates. WHEN a tuning system, say a coil and condenser are tuned to a given station, small oscillations which continue as long as the station feeds mitiite amounts of energy to keep them going, are set up in that coil. If the station stops, then these minute osctllations also stop. ‘These small impulses of current are fed to the grid of a three-électrode valve, in the plate circuit of which is a coil which can be adjusted with respect to the first coil. These impulses of current appear in this plate coil in an amplified form. As the curretit takes practically no time to tYavel through the valve between the two coils, the two sets of oscillations can be assumed to be in phase. Now we come to an interesting point. It has been stated that oscillation in the first or grid coil are kept in motion by the incoming oscillations from the station to which the system is tuned. By gradually increasing the coupling between the plate and grid coils energy is given by the plate coil in the form of oscillations exactly in phase with those of the grid coil and in turn with those of the station. "Nvery little helps," says the grid coil, and it oscillates with renewed vyigour, This -is desituble from 4 point of reception, as enormous umplificition, far in excess of that of the amplification of the valve itself, is obtdinéd. There c6tiies the natural question. Why not incréase this feed biek still further and obtain all the amplificntion that is desired. Well, let us seé just What would happen. Controlling Feed Back. ASSUMING this coupling to be gradually intreased, there comes a time when the valve would generate oscillations itsé¢lf, still at the same frequency as that of the station, but absolutely uncontrollable by the transmitting station. If the station stops altogether, the valve would still oscillate, and as it is the station the operntor is listening to and not one’s oscillating receiver (which is very often decidedly not the case), whatever the station is broadcasting will be entirely marred by one’s own generated oxcillations. Also, as has been stated before. a valve will not amplify when oscillating itself. The amount of back coupling necessary to produce these oscillations depends on a number of factors. The chief one being the resistance of the grid coil. If of a high resistance, then more coupling and more enérey will have to be imparted to start this state of self oscillation. In the average broadcast receiver, these coils are of a fairly low resistance and it needs

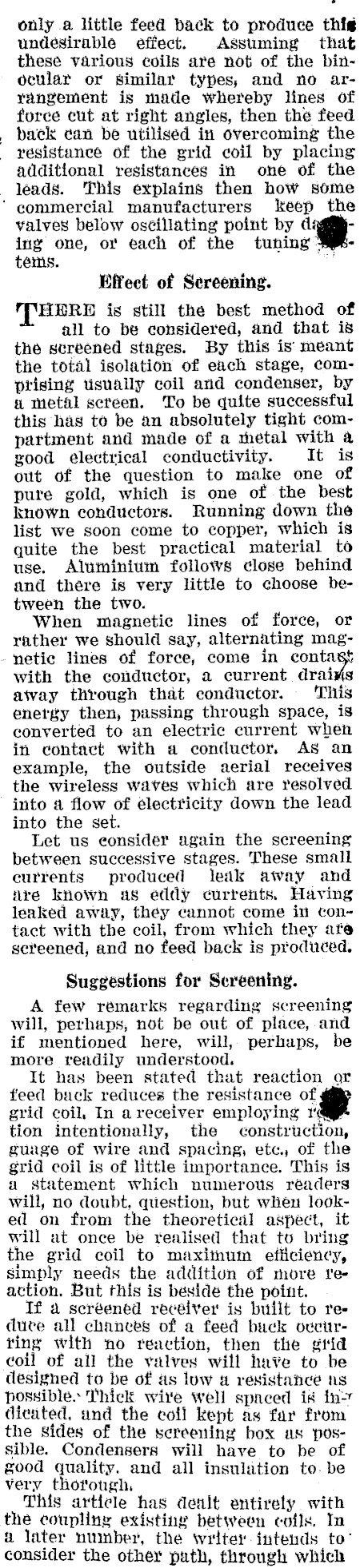

only a little feed back to produce thig undesirable effect. Assuming that these various coils are not of the binocular or similar types, and no arrangement is made whereby lines of force cut at right angles, then the feed back can be utilised in overcoming the resistance of the grid coil by placing additional resistances in one of the jeads. This explains then how some ‘ commercial manufacturers keep the valves below os¢illating point by d ing one, or each of the tuning 5yRtems. Effect of Sereening. "THERE is still the best method of all to be considered, and that is the screened stages. By this is meant the total isolation of each stage, comprising usually coil and condenser, by & metal scteen. To be quite successful this has to be an absolutely tight compartment and made of a metal with a good electrical conductivity. It is out of the question to make one of pure gold, which is one of the best known conductors. Running down the list we soon come to copper, which is quite the best practical material to use. Aluminium follows close behind and there is very little to choose between the two. When magnetic lines of force, or rather we should say, alternating magnetic lines of force, come in contast with the conductor, a current draixs away through that conductor. This enetgy then, passing through space, is converted to an electric current when in contact with a conductor. AS an example, the outside aerial receives the wireless waves which are resolved into a flow of électticity down the lead into the set. Let us consider again the screening between successive stages. These small currents produced leak away and are known as éddy currents, Having lenked away, they cannot come in contact with the coil, from which they ate screened, and no feed back is produced. Suggestions for Screening. A few remarks regarding screening will, perhaps, not be out of place, and if mentioned here, will, perhaps, be more readily understood. It has been stated that reaction or feed buck reduces the resistance of grid coil, In a receiver employing 1@F tion intentionally, the construction, guage of wire and spacing, etc, of the grid coil is of little importance. This is a statement which numerous réaders will, no doubt, question, but when looked on from the theoretical aspect, it will at once be realised that to bring the grid coil to maximum efficiency, simply needs the. addition of more t'eaction. But this is béside the point. If a seréened receiver is built to reduve all chances of a feed buck ovcirting with no reaction, then the gtid coil of all the valves will have to be designed to be of 4s low 4 resistance ns possible. Thick wire well spneed is tn dicated, und the coil kept as far from the sides of the screening box as possible. Condensers will have to be of good quality, and all insulation to. be very thotough, This article has dealt entirely with the coupling existing between cofls. In a later number, the writer intends to’ consider the other puth, through which

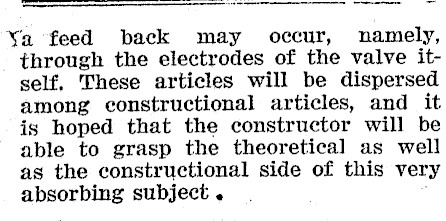

Ya feed back may occur, namely, through the electrodes of the valve itself, These articles will be dispersed among constructional articles, and it is hoped that the constructor will be able to grasp the theoretical as well as the constructional side of this very absorbing subject .
