THE 2RF BROWNINGDRAKE

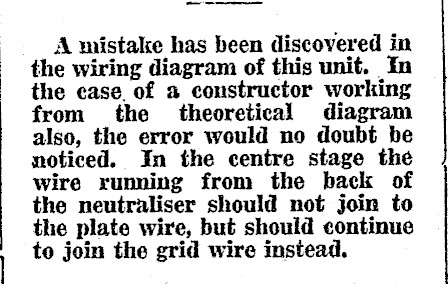

nea aes A mistake has been discovered in the wiring diagram of this unit. In the case of a constructor working from the theoretical diagram also, the error would no doubt be noticed. In the centre stage the wire running from the back of the neutraliser should not join to the plate wire, but should continue to join the grid wire instead.
