TWO-VOLT VALVES

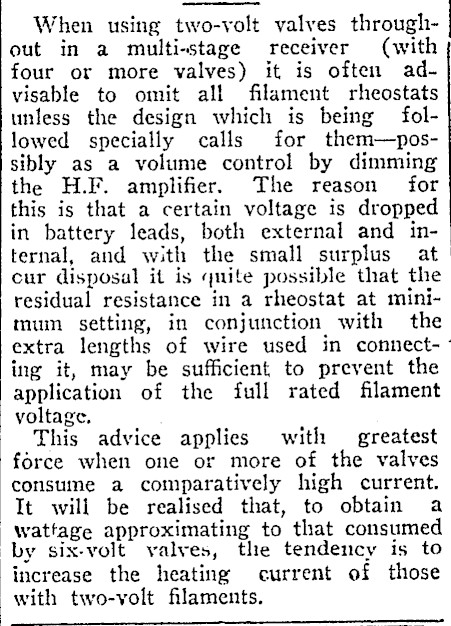

When using two-volt valves through- | out in a multi-stage receiver (with four or more valves) it is often advisable to omit all filament rheostats unless the design which is being followed specially calls for them-pos-sibly as a volume control by dimming the H.F. amplifier. The reason for this is that a certain voltage is dropped in battery leads, both external and internal, and with the small surplus at cur disposal it is quite possible that the residual resistance in a rheostat at minimum setting, in conjunction with the extra lengths of wire used in connect- ’ ing it, may be sufficient to prevent the application of the full rated filament voltage. This advice applies with greatest force when one or more of the valves consume a comparatively high current. It will be realised that, to obtain a wattage approximating to that consumed by six-volt valves, the tendency is to increase the heating current of those with two-volt filaments.
