Audio Transformer Markings.

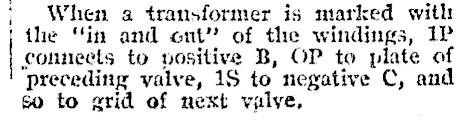

' When a transformer is marked with the "in and ont" of the windings, 1P conneets to positive B, OP to plate of ‘preceding valve, 1S to negative C, and & to arid of next valve,
