Recent Developments in the Theory of Ventilation

By CHAS. L. HUBBARD, in the Architectural Record”

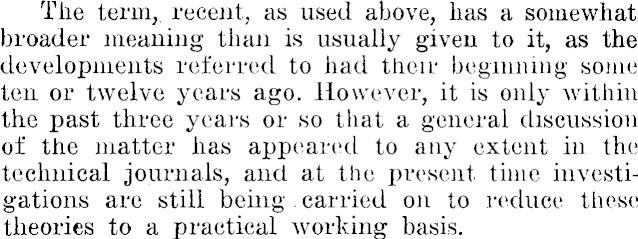

The term,, recent, as used above, has a somewhat broader meaning than is usually given to it, as the developments referred to had their beginning some ten or twelve years ago. However, it is only within the past three years or so that a general discussion of the matter has appeared to any extent in the technical journals, and at the present time investigations are still being . carried on to reduce these theories to a practical working basis.

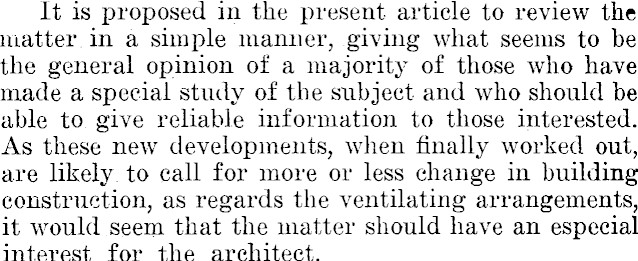

It is . proposed in the present article to review the matter in a simple manner, giving what seems to be the general opinion of a majority of those who have made a special study of the subject and who should be able to give reliable information to those interested. As these new developments, when finally worked out, are likely, to. call for more or less change in building construction, as regards the ventilating arrangements, it would seem that the matter should have an especial interest for the architect.

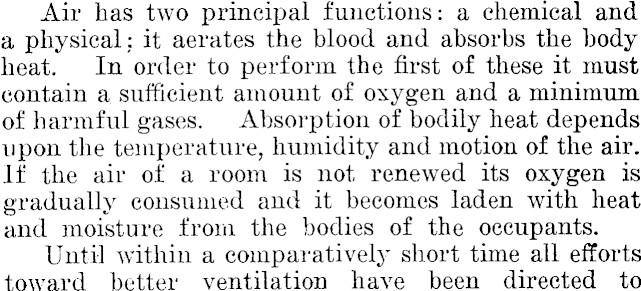

Air has two principal functions: a chemical and a physical; it aerates the blood and absorbs the body heat. ,In order to perform the first of these it must contain a sufficient amount of oxygen and a minimum of harmful gases. Absorption of bodily heat depends upon the temperature, humidity and motion of the air. If the air of a room is not renewed its oxygen is gradually consumed and it becomes laden with heat and moisture from the bodies of the occupants. Until within a comparatively short time all efforts toward better ventilation have been directed to

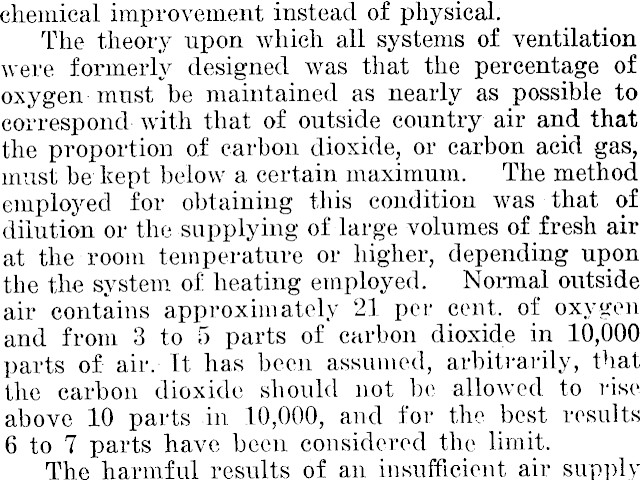

chemical improvement instead of physical. The theory upon which all systems of ventilation were formerly designed was that the percentage of oxygen must be maintained as nearly as possible to correspond- with that of outside country air and that the proportion of carbon dioxide, or carbon acid gas, must be kept below a certain maximum. The method employed for obtaining this condition was that of dilution or the supplying of large volumes of- fresh air at the room temperature or higher, depending upon the the system of heating employed. Normal outside air contains approximately 21 per cent, of oxygen and from 3 to 5 parts of carbon dioxide in 10,000 parts of air.- It has been assumed, arbitrarily, that the carbon dioxide should not be allowed to rise above 10 parts in 10,000, and for the best results 6 to 7 parts have been considered the limit. The harmful results of an insufficient air supply

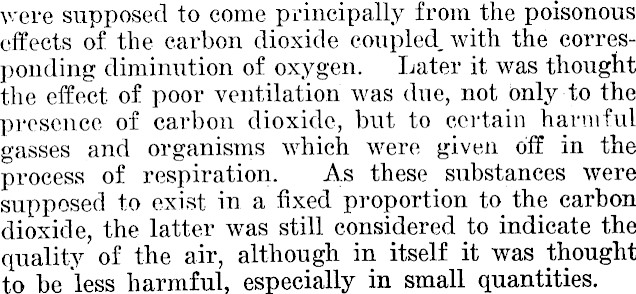

were supposed to come principally from the poisonous effects of the carbon dioxide coupled, with the corresponding diminution of oxygen. Later it was thought the effect of poor ventilation was due, not only to the presence of carbon dioxide, but to certain harmful gasses and organisms which were given off in the process of respiration. As these substances were supposed to exist in a fixed proportion to the carbon dioxide, the latter was still considered to indicate the quality of the air, although in itself it was thought to be less harmful, especially in small quantities.

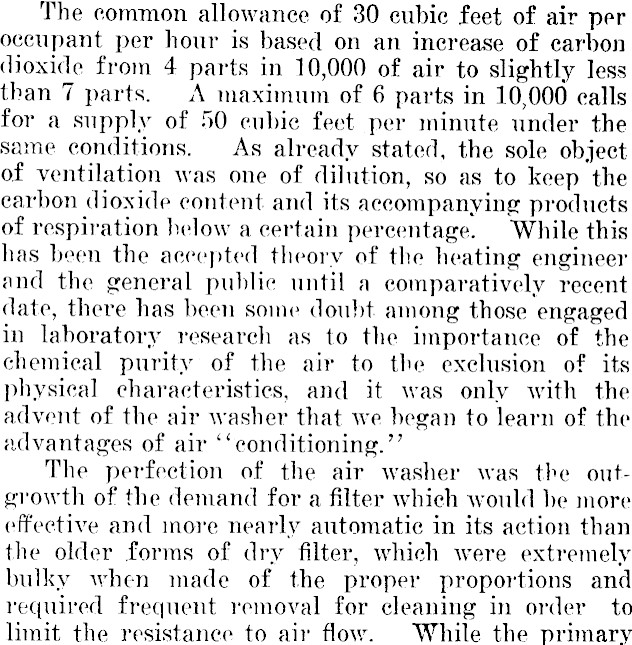

The common allowance of 30 cubic feet of air per occupant per hour is based on an increase of carbon dioxide from 4 parts in .10,000 of air to slightly less than 7 parts. A maximum of 6 parts in 10,000 calls for a supply of 50 cubic feet per minute under the same conditions. As already stated, the sole object of ventilation was one of dilution, so as to keep the carbon dioxide content and its accompanying products of respiration below a certain percentage. "While this has been the accepted theory of the heating engineer and the general public until a comparatively recent date, there has been some doubt among those engaged in laboratory research as to the importance of the chemical purity of the air to the exclusion of its physical characteristics, and it was only with the advent of the air washer that we began to learn of the advantages of air “conditioning.” The perfection of the air washer was the outgrowth of the demand for a filter which would be more effective and more nearly automatic in its action than the older forms of dry filter, which were extremely bulky when made of the proper proportions and required frequent removal for cleaning in order to limit the resistance to air flow. While the primary

use of the air washer was for the removal of dust and soot from city air, its field was soon extended to air moistening, cooling, and the removal of some of the products of respiration.

Although most of the ventilating systems at the present time are designed along the same general lines as in the past (with the exception of air washing in large city buildings), the theory of ventilation, as accepted by many of the leading authorities at home and abroad, has radically changed, the idea being that the physical characteristics of the air we breathe are of much greater importance than chemical purity. While there are still some who give considerable importance to the chemical theory, a majority of those who have made an exhaustive study of the matter seem to have discarded the older theory and recommend that future development in the design of ventilating equipment he along the line of improvement in temperature and humidity control and in air movement.

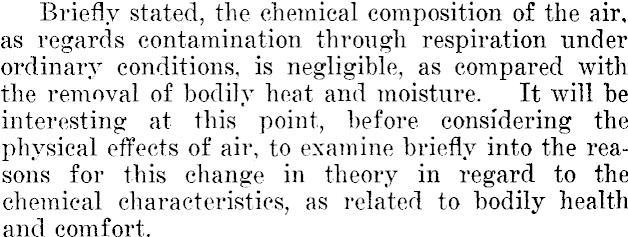

Briefly stated, the chemical composition of the air, as regards contamination through respiration under ordinary conditions, is negligible, as compared with the removal of bodily heat and moisture. It will he interesting at this point, before considering the physical effects of air, to examine briefly into the reasons, for this change in theory in regard to the chemical characteristics, as related to bodily health and comfort.

In order to show the relative importance of changes in the percentage of oxygen and carbon dioxide in the air for breathing, it is necessary to have a clear understanding of the process of respiration and the changes which take place in the air within the passages of the respiratory tract. At the beginning, it should be clearly understood that the lungs are never filled with pure air, even under the most favourable conditions, because breathing is only a frequently repeated slight dilution of the air remaining in the throat and larger bronchial tubes after expiration. So far as its chemical composition is concerned, this is air which has passed out of the lungs, and after

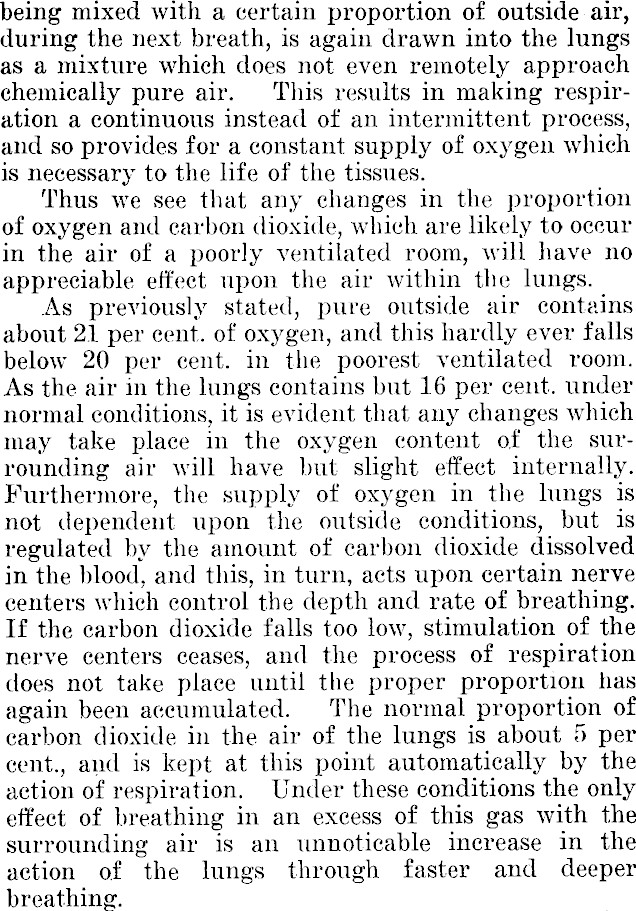

being mixed with a certain proportion of outside air, during the next breath, is again drawn into the lungs as a mixture which does not even remotely approach chemically pure air. This results in making respiration a continuous instead of an intermittent process, and so provides for a constant supply of oxygen which is necessary to the life of the tissues. Thus we see that any changes in the proportion of oxygen and carbon dioxide, which are likely to occur in the air of a poorly ventilated room, will have no appreciable effect upon the air within the lungs. As previously stated, pure outside air contains about 2.1 per cent, of oxygen, and this hardly ever falls below 20 per cent, in the poorest ventilated room. As the air in the lungs contains but 16 per cent, under normal conditions, it is evident that any changes which may take place in the oxygen content of the surrounding air will have but slight effect internally. Furthermore, the supply of oxygen in the lungs is not dependent upon the outside conditions, but is regulated by the amount of carbon dioxide dissolved in the blood, and this, in turn, acts upon certain nerve centers which control the depth and rate of breathing. If the carbon dioxide falls too low, stimulation of the nerve centers ceases, and the process of respiration does not take place until the proper proportion has again been accumulated. The normal proportion of carbon dioxide in the air of the lungs is about 5 per cent., and is kept at this point automatically by the action of respiration. Under these conditions the only effect of breathing in an excess of this gas with the surrounding air is an unnoticable increase in the action of the lungs through faster and deeper breathing.

Thus we see that the amount of carbon dioxide remaining in the blood depends entirely upon internal conditions rather than external, and is entirely automatic in its action —the rate of ventilation of the lungs being the means by which a proper balance is maintained between the oxygen and carbon dioxide. It is also evident that our chief safeguard against a want of oxygen by the body tissues is a definite accumulation of carbon dioxide, and this is maintained by rebreathing the “dead-space” air, so called, contained in the throat and larger bronchial tubes. Besides the necessary reinspiration of the deadspace air, it is also known that one usually takes in again a part of the breath entirely expelled from the body during the preceding expiration. When standing alone in a room a person will rebreathe from 1 to 2 per cent, of the air he has just exhaled. When lying in bed he will rebreathe from 2 to 6 per cent, or more, depending upon his position, and even in the open, if there is a shield to break the wind, a small proportion is taken back with nearly every

breath. While the above seems to prove the fallacy of the older method of reasoning it is interesting to note the results of certain experiments which have been carried out from time to time. Although a large amount of investigation has been done in this direction, space allows the mention of only, a few results.

As far back as 1842 Leblanc found that an animal could survive exposure to atmosphere containing 30 per cent, of carbon dioxide, provided the proportion

of oxygen was 70 per cent., and recover quickly from the depression produced by this mixture.

Bettenkofer, in 1840, demonstrated that the symptoms produced in crowded places were due neither to an excess of carbon dioxide nor a deficiency of oxygen. He also found that air containing 1 per cent. (100 parts in 10,000) of carbon dioxide could be breathed for hours without discomfort, and laid down the doctrine, accepted by sanitarians, that the percentage of carbon dioxide was only a guide to the other harmful properties contained in tiie atmosphere.

Later tests in an English brewery, where carbonic acid gas was compressed and bottled, showed the air of the workroom to contain from 0.14 to 0.93 per cent, of this gas (14 to 93 parts in 10,000). "Work was carried on continuously in 12-hour shifts, the men having their meals in the room. Some, it is stated, had. followed this employment for eighteen years without detriment to health.

Other experiments have shown that the air may contain from 3 to 4 per cent. (300 to 400 parts in 10,000) of carbon dioxide before increased respiration will be noticed by an individual at rest, but percentages over 1 per cent. (100 parts in 10,0uU) diminish the power to do muscular work.

The widespread belief in the presence of organic poisons in the expired air is mainly based on the statements of Brown-Sequard and JL) ’Arsonval, and it has been assumed by sanitarians that the carbon dioxide must be kept below 10 parts in 10,000 of air to prevent harmful results from this condition, the percentage of carbon dioxide being taken as an index of their amount.

The evil smell of crowded rooms has long been accepted as a proof of the existence of such poisons. As a matter or fact, such odors come from secretions oi tiie skin; from food eaten, such as onions and garlic; decayed teeth; the bad breath of dyspepsia; soiled clothes, etc., etc. While such a mixture of odors is offensive and disgusting, it has been proved to be harmless, so far as its direct effect upon health is concerned. j

The theory of the Brown-Sequard and D ’Arsonval was based on three series of tests, as follows: In the first case, water with which they had repeatedly washed out the air tubes of a dog, was injected into the blood-vessels of a rabbit. In the second, they injected the water condensed from the exhaled breath of a man; and in the third, the water condensed from the breath of a dog. The principal symptoms recorded were dilation of the pupil, acceleration of the heart, and paralysis of the lower limbs. The larger doses caused, as a rule, labored breathing, retching and contracted pupils.

Extensive investigations carried out along this same line more recently have proved this theory at fault and seem to show that the results were due to the injection of comparatively large' quantities of water, or to its containing infectious bacteria, rather than to any harmful organic matter. For example, an experiment was arranged where the breath of one dog was exhaled directly into the lungs of another continuously for nearly seven hours without harmful results.

In other cases the exhaled breath of human beings was condensed, then dried, sterilized, mixed with distilled water, and injected beneath the skin of rabbits and mice. Here as before, no sign of disturbance was shown. In comparison with this, both rabbits and a puppy were killed by injecting sufficient quantities of pure distilled water.

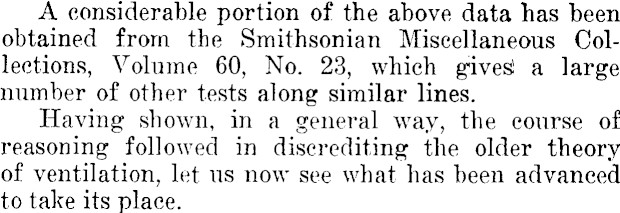

A considerable portion of the above data has been obtained from the Smithsonian Miscellaneous Collections, Volume 60, No. 23, which gives! a large number of other tests along similar lines. Having shown, in , a general way, the course of reasoning followed in discrediting the older theory of ventilation, let us now see what has been advanced to take its place.

More than thirty years ago Hermans suggested that the results of poor ventilation might be due. in some way, to heat rather than the chemical condition of the air, and recent investigations have been carried out along this line. Experiments show that an ordinary adult will produce, and must be relieved of, sufficient heat in the course of. an hour to raise the temperature of 1,000 cubic feet of air 15 or 20 degrees. In addition to this, a considerable amount of moisture is given off, partly by perspiration and partly as vapor in the air exhaled from the,lungs. Unless this heat and moisture are promptly removed . the body becomes surrounded by an envelope of stagnant air, having the same effect as an oppressive day in the summer, with a high temperature and excessive humidity. The remedy for this condition is evidently suitable temperature and humidity regulation and air movement, which combination forms the basis of design for the latest systems of ventilation.

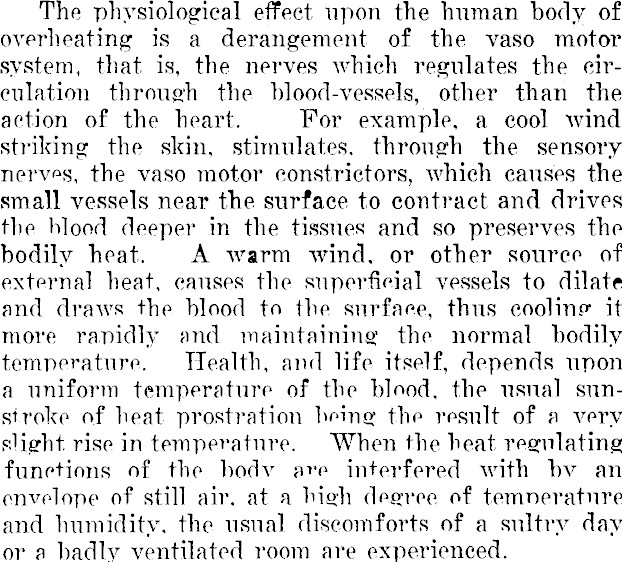

The physiological effect upon the human body of overheating is a derangement of the vaso motor system, that is, the nerves which regulates the circulation through the blood-vessels, other than the action of the heart. For example, a cool wind striking the skin, stimulates, through the sensory nerves, the vaso motor constrictors, which causes the small vessels near the surface to contract and drives the blood deeper in the tissues and so preserves the bodily heat. A warm wind, or other source of external heat, causes the superficial vessels to dilate and draws the blood to the surface, thus cooling it more rapidly and maintaining the normal bodily temperature. Health, and life itself, depends upon a uniform temperature of the blood, the usual sunstroke of heat prostration being the result of a very slight rise in temperature. When the heat regulating functions of the bodv are interfered with bv an envelope of still air. at a high degree of temperature and humidity, the usual discomforts of a sultry day or a badly ventilated room are experienced.

Briefly stated, living beings constantly produce and give off to their surroundings an excess of bodily heat. This heat must be disposed of, and is constantly carried away from the body, partly in the air exhaled from the lungs, but chiefly through the skin by radiation and conduction assisted by the evaporation of perspiration. It is evident that the prompt removal of this heat will depend upon' a surrounding atmosphere neither too hot nor too moist, and further-

more that the process will he hastened if the air is in motion.

Either too high a temperature or too much moisture in the air will retard the cooling of the body, and when these two conditions occur at the same time, as is usually the case in a poorly ventilated room, the result is doubly harmful.

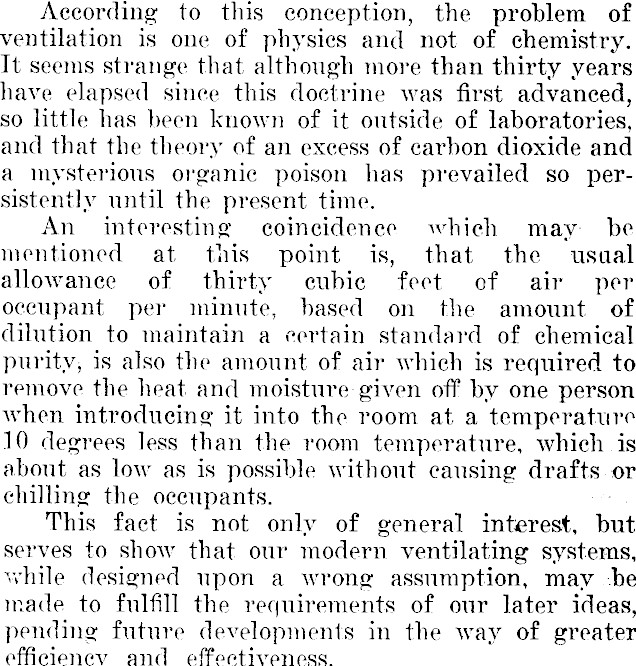

According to this conception, the problem of ventilation is one of physics and not of chemistry. It seems strange that although more than thirty years have elapsed since this doctrine was first advanced, so little has been known of it outside of laboratories, and that the theory of an excess of carbon dioxide and a mysterious organic poison has prevailed so persistently until the present time. An interesting coincidence which may be mentioned at this point is, that the usual allowance of thirty cubic feet of air per occupant per minute, based on the amount of dilution to maintain a certain standard of chemical purity, is also the amount of air which is required to remove the heat and moisture given off by one person when introducing it into the room at a temperature 10 degrees less than the room temperature, which. is about as low as is possible without causing drafts or chilling the occupants. •?- This fact is not only of general interest, but serves to show that our modern ventilating systems, while designed upon a wrong assumption, may be made to fulfill the requirements of our later ideas, pending future developments in the way of greater effieiencv and effectiveness.

Thus far the new theory of ventilation has been stated as a fact without giving any of the reasons leading ud to its adoption.

Investigations in this direction have been under way for a number of years and are quite fully reported in the publication of the Smithsonian Institution previously referred to. Only a few of the simpler experiments will be mentioned in the present article.

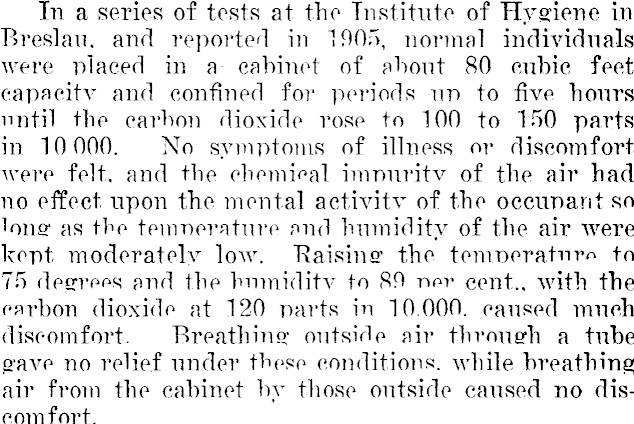

In a series of tests at the Institute of Hygiene in Breslau, and reported in 1905, normal individuals were placed in a cabinet of about 80 cubic feet capacity and confined for periods up to five hours until the carbon dioxide rose to 100 to 150 parts in 10 000. No symptoms of illness or discomfort were felt, and the chemical imnuritv of the air had no effect upon the mental activity of the occupant so long as the temperature and humidity of the air were kept moderately low. "Raising the temperature to 75 degrees and the humidity to 89 per cent., with the carbon dioxide at 120 parts in 10.000. caused much discomfort. Breathing outside air through a tube gave no relief under these conditions, while breathing air from the cabinet by those outside caused no discomfort.

Circulating the air within the cabinet, by means of a fan. without changes in temperature, humidity, or chemical composition, removed the disagreeable svmptoms experienced bv the occupants. When the chamber was cooled to 02 decrees there was no feeling of discomfort although the carbon dioxide rose to 160 parts in 10.000.

Recent investigations haw also been carried out along a similar line in the Physiological Laboratory

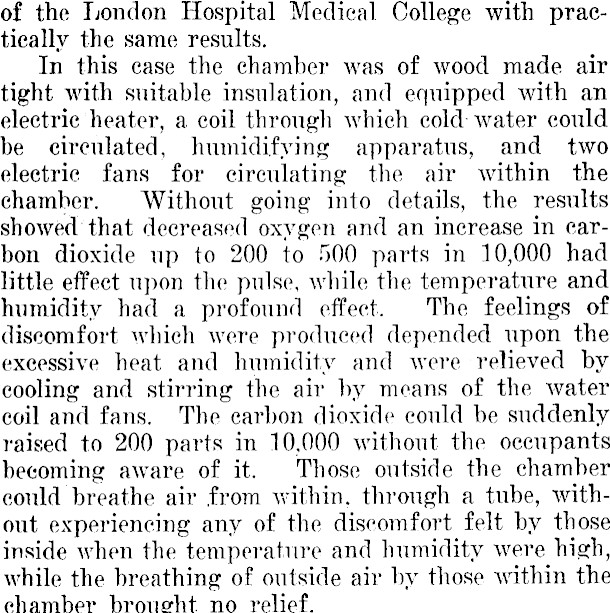

of the London Hospital Medical College with practically the same results. In this case the chamber was of wood made air tight with suitable insulation, and equipped with an electric heater, a coil through which cold-water could be circulated, humidifying apparatus, and two electric fans for circulating the air within the chamber. Without going into details, the results showed that decreased oxygen and an increase in carbon dioxide up to 200 to 500 parts in 10,000 had little effect upon the pulse, while the temperature and humidity had a profound effect. The feelings of discomfort which were produced depended upon the excessive heat and humidity and were relieved by cooling and stirring the air by means of the water coil and fans. The carbon dioxide could be suddenly raised to 200 parts in 10,000 without the occupants becoming aware of it. Those outside the chamber could breathe air from within, through a tube, without experiencing any of the discomfort felt by those inside when the temperature and humidity were high, while the breathing of outside air by those within the chamber brought no relief.

A series of tests carried out some time ago by the Chicago Commission of Ventilation seemed to show that there was a temperature and humidity range within which the occupants of a room were comfortable, and this range has given rise to what is called the “comfort zone.” This means that there is a maximum temperature with a minimum relative humidity, and a minimum temperature with a corresponding maximum relative humidity, between the limits of which the occupants of a room are comfortable. In other words, there seems to be no best temperature or best relative humidity; but the maximum temperature at which one is comfortable will be associated with a minimum relative humidity and the minimum temperature for comfort will have associated with it a maximum relative humidity. Under the conditions of the tests made, it_ was found that a temperature of 64 to 70 degrees with a corresponding relative humidity of 55 to 30 per cent, seemed to be the limit that is, the comfort zone was between 64 degrees with 55 per cent. humidity, and

70 degrees with 30 per cent, humidity. We have heard much recently of the necessity of more humidity in the air we breathe, the atmosphere of our dwellings and public buildings being likened to that of an arid desert.

While a certain amount of moisture, adds to our comfort, too much is injurious to health, as shown by the experiments iust described. Taken alone, a certain degree of humidity does not signify very much, within certain limits, but must be considered in connection with the existing temperature : the combination being what produces comfort or discomfort. It is probably safe to say, where no special provision is made for humidity control, that during the winter our dwellings are too drv and our audience halls and theatres too moist. Ibis is due to the proportion of cubic space per occupant, boiuv large in the former and small in the latter case. While much has been said of the harmfulness of too dry an atmosphere and its effect upon the mucous membrane of the respiratory passages, there seems to he some reason to doubt that lack of moisture. within practical limits, has any particular effect in this direction.

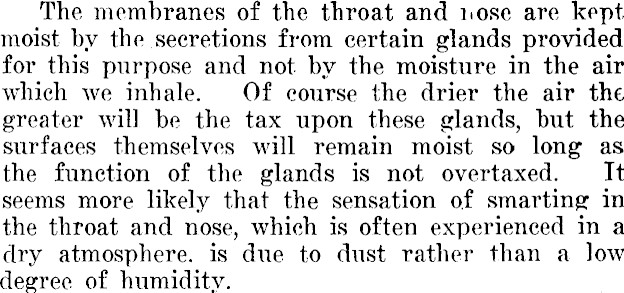

The membranes of the throat and nose are kept moist by the secretions from certain glands provided for this purpose and not by the moisture in the air which we inhale. Of course the drier the air the greater will be the tax upon these glands, hut the surfaces themselves will remain moist so long as the function of the glands is not overtaxed. It seems more likely that the sensation of smarting in the throat and nose, which is often experienced in a dry atmosphere, is due to dust rather than a low degree of humidity.

While dry air does not necessarily contain more dust than moist air, a low humidity tends to extract moisture from the floors, furniture, and other objects and thus liberates a certain amount of dust which is readily picked up by the moving air. It is probable that one of the most important beneficial effects of outdoor sleeping is breathing a comparatively dust free air. The relative humidity is higher at night and the amount of dust in the air consequently low. The most extensive investigations in both theoretical and practical ventilation are being carried out in this country by the Chicago Commission on Ventilation and the New York State Commission on Ventilation.

The former was organized in February. 1910, and has done a large amount of practical work along the line of ventilation as related to schools, churches, theatres, industrial buildings of various kinds, and street cars. The work is carried on partly in laboratories, especially equipped for this purpose, and partly in buildings in actual operation, where tests are conducted under practical working conditions.

The New York Commission was organized in June, 1913, and began its actual work in December of the same year.

The phases of the problem which have been given special study may be classified as follows; Chemistry of the Air Oxygen, carbon dioxide,

organic matter, odors, ozone.

Air Conditioning—Temperature, humidity, dust.

Mechanics of Ventilation—Air volume, air movement, heating of air. cooling, recirculation, natural and artificial ventilation.

Efficiency of installation and operation. Ventilating apparatus.

The laboratory is equipped with a ventilation chamber having a capacity of 1.150 cubic feet, which is provided with apparatus by which the air of the chamber mav be confined and rebreathed, or renewed at any desired rate, mav be maintained at anv desired temperature and humidity, mav be kept nuiet or in motion, may be removed, washed and recirculated, and maA r be given anv desired chemical composition.

In this chamber from one to six persons mav be confined for any length of time. On certain days they may engage in definite mental tasks, while on other days they perform a definite amount of physical work under a given combination of air conditions. Bv the quantitative study of a considerable number of bodily functions, such as temperature, sensitiveness of the skin, blood-pressure and nulse rate, respiratory exchange, the production of heat, duration of digestion, various changes in the urine, etc., an endeavour is being made to learn in what respects, if am r , the physical and mental efficiency are altered by changes in air conditions.
