Napier Automatic Lubrication.

Progress, Volume II, Issue 3, 2 January 1907, Page 102

Napier Automatic Lubrication.

The lubrication of the six-cylinder Napier engine is very interesting and simple in its action. There are no drips in connection with it, and merely one oil gauge, which is situated on the clash On the left side of the crank case a small direct acting pump, A, is carried, -which is driven by a worm on the half-time shaft, the worm being solid with the shaft. The oil is collected by this pump through a strainer from a well in the bottom of the crank case. The amount of oil necessary is detei mined by means of one of the well-known Napier gauge cocks, operated by means of a lever inside the bonnet. The crank chamber is filled up each morning to the correct level, that is until oil runs out of this small gauge cock ; when the correct level is obtained, the gauge cock is shut, and the lubrication of the car is right for the day The oil is delivered from the pump by means of a large bore copper tube, which carries it first of all to the dashboard, so that it may pass through the oil gauge, B, and be in evidence to show that it is working properly. Tt is then led away from

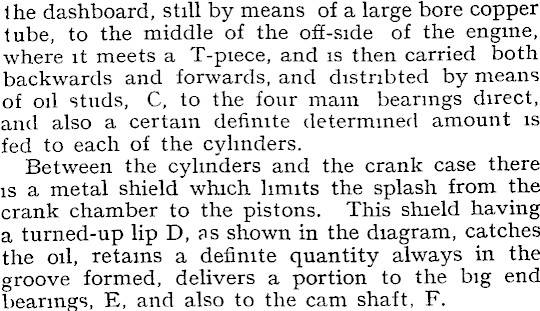

the dashboard, still by means of a large bore copper tube, to the middle of the off-side of the engine, where it meets a T-piece, and is then carried both backwards and forwards, and distribted by means of oil studs, C, to the four mam bearings direct, and also a certain definite determined amount is fed to each of the cylinders. Between the cylinders and the crank case there is a metal shield which limits the splash from, the crank chamber to the pistons. This shield having a turned-up lip D, fis shown in the diagram, catches the oil, retains a definite quantity always in the groove formed, delivers a portion to the big end bearings, E, and also to the cam shaft, F.

The whole of the oil, after being used, drains into the 'well of the crank case, and after passing through a strainer, is sucked back to the pump. The principle underlying it is a certain definite quantity is delivered continuously to each of the bearings, and also to the cylinders. This eliminates the possibility of a smoking engine, if the detail of having the correct amount of oil in the well is attended to, and this, owing to the Napier gauge, is the simplest thing m the world. It will be noticed in the plan view that at the termination of the pipes leading to the two mam end bearings of the engine, there are two small oil circulation test cocks. These are merely for test purposes, to make sure occasionally that the pipes are quite free. There is, however, scarcely any necessity for these cocks, as the pipes themselves are purposely made of large bore to obviate the possibility of stoppage. Should anything happen to the pump, which would be immediatel) shown by the oil gauge on the dash, all that is necessary to do is to put more oil in the crank chamber, and lubricate by splash until the pump can be put in order. The mechanism for oiling the big end is shown in section in the small diagram, where the pipe will be seen leading downwards and squirting into the small scoop, carried by the big end marked F The pipe leading to the cam shaft is marked d "'The delightful simplicity of the whole system is its chief charm It is entirely independent ot an\ exhaust or other pressure, is self-contained with

the engine, does away with all drips that may become blocked, and require adjustment, according to the temperature and weather, etc. ; it starts when the engine starts, and stops when the engine stops, and the lubrication m every case is directly proportional to the speed of the engine. This is automatically kept correct, and undoubtedly much of the sweetness of the running, and the ability to run fast without deterioration or fuss which these Napier engines possess, is in great measure due to the perfection and certainty of their lubrication. As to the pressure at which the oil is fed, this, of course, rises with the speed of the engine, but in

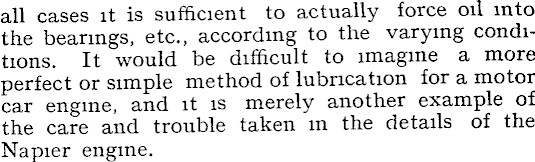

all cases it is sufficient to actually force oil into the bearings, etc., according to the varying conditions. It would be difficult to imagine a more perfect or simple method of lubrication for a motor car engine, and it is merely another example of the care and trouble taken in the details of the Napier engine.
