Principles of Ventilation.

Progress, Volume I, Issue 10, 1 August 1906, Page 266

Principles of Ventilation.

By Alfred L. Hubbard, M.E.

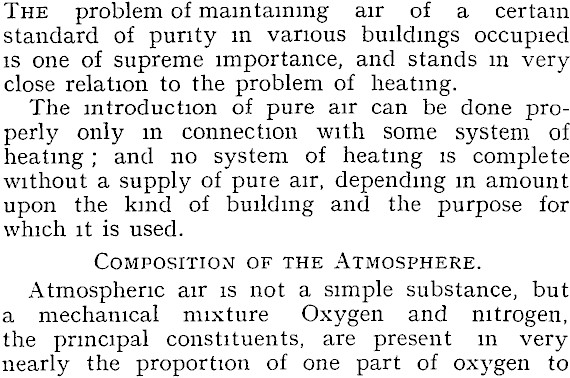

The problem of maintaining air of a certain standard of purity in various buildings occupied is one of supreme importance, and stands in very close relation to the problem of heating. The introduction of pure air can be done properly only m connection with some system of heating ; and no system of heating is complete without a supply of puie air, depending m amount upon the kind of building and the purpose for which it is used. Composition of the Atmosphere. Atmospheric air is not a simple substance, but a mechanical mixture Oxygen and nitrogen, the principal constituents, are present in very nearly the proportion of one part of oxygen to

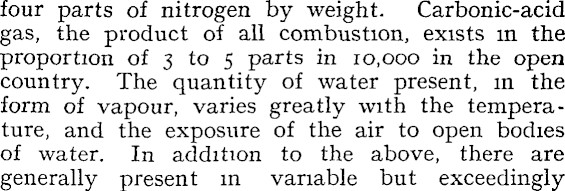

four parts of nitrogen by weight. Carbonic-acid gas, the product of all combustion, exists in the proportion of 3 to 5 parts in 10,000 in the open country. The quantity of water present, in the form of vapour, varies greatly with the temperature, and the exposure of the air to open bodies of water. In addition to the above, there are generally present in variable but exceedingly

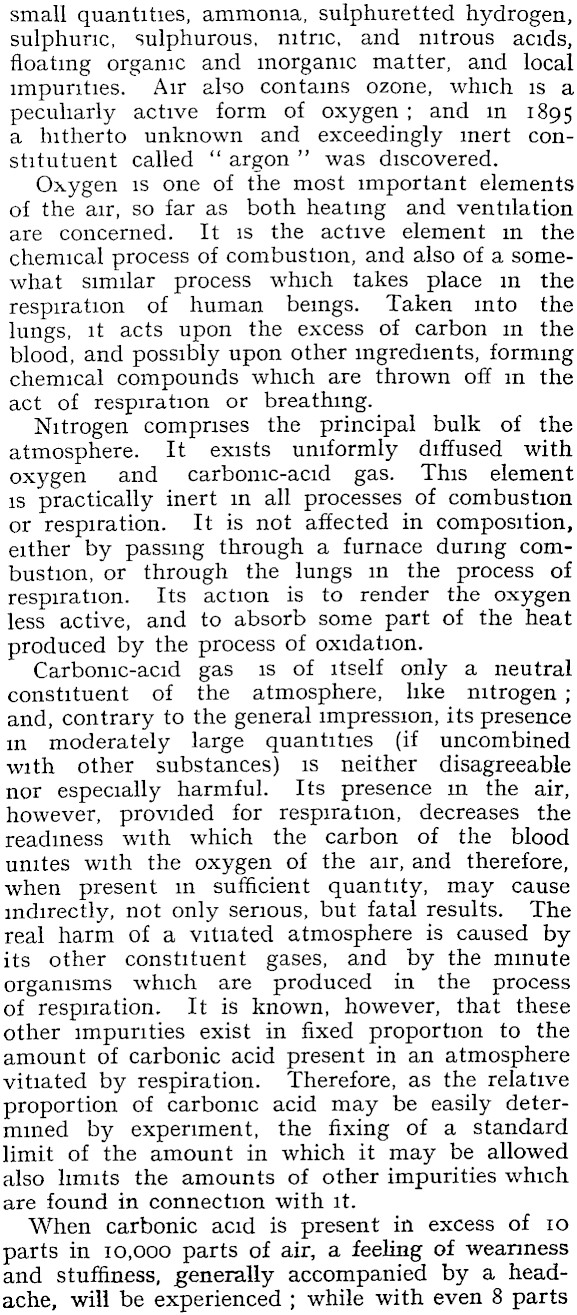

small quantities, ammonia, sulphuretted hydrogen, sulphuric, sulphurous, nitric, and nitrous acids, floating organic and inorganic matter, and local impurities. Air also contains ozone, which is a peculiarly active form of oxygen ; and in 1895 a hitherto unknown and exceedingly inert constitutuent called " argon " was discovered. Oxygen is one of the most important elements of the air, so far as both heating and ventilation are concerned. It is the active element in the chemical process of combustion, and also of a somewhat similar process which takes place in the respiration of human bemgs. Taken into the lungs, it acts upon the excess of carbon m the blood, and possibly upon other ingredients, forming chemical compounds which are thrown off in the act of respiration or breathing. Nitrogen comprises the principal bulk of the atmosphere. It exists uniformly diffused with oxygen and carbonic-acid gas. This element is practically inert in all processes of combustion or respiration. It is not affected in composition, either by passing through a furnace during combustion, or through the lungs in the process of respiration. Its action is to render the oxygen less active, and to absorb some part of the heat produced by the process of oxidation. Carbonic-acid gas is of itself only a neutral constituent of the atmosphere, like nitrogen ; and, contrary to the general impression, its presence m moderately large quantities (if uncombined with other substances) is neither disagreeable nor especially harmful. Its presence in the air, however, provided for respiration, decreases the readiness with which the carbon of the blood unites with the oxygen of the air, and therefore, when present in sufficient quantity, may cause indirectly, not only serious, but fatal results. The real harm of a vitiated atmosphere is caused by its other constituent gases, and by the minute organisms which are produced in the process of respiration. It is known, however, that these other impurities exist in fixed proportion to the amount of carbonic acid present in an atmosphere vitiated by respiration. Therefore, as the relative proportion of carbonic acid may be easily determined by experiment, the fixing of a standard limit of the amount in which it may be allowed also limits the amounts of other impurities which are found in connection with it. When carbonic acid is present in excess of 10 parts in 10,000 parts of air, a feeling of weariness and stuffiness, generally accompanied by a headache, will be experienced ; while with even 8 parts

in 10,000 parts a room would be considered close For general considerations of ventilation, the limit should be placed at 6 to 7 parts in 10,000, thus allowing an increase of 2 to 3 parts over that present m outdoor air, which may be considered to contain 4 parts in 10,000 under ordinary conditions. Analysis of Air. The amount of carbonic acid present in the air may be readily determined with sufficient accuracy for practical purposes, m the following manner : Six clean, dry, and tightly corked bottles, containing respectively ioo, 200, 250, 300, 350, and 400 cubic centimetres, a glass tube containing exactly 15 cubic centimetres to a given mark, and a bottle of perfectly clear, fresh hmewater,

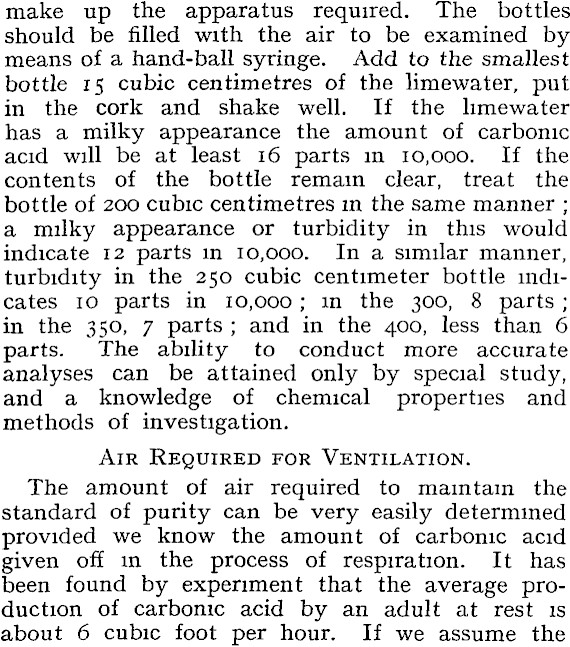

make up the apparatus required. The bottles should be filled with the air to be examined by means of a hand-ball syringe. Add to the smallest bottle 15 cubic centimetres of the limewater, put in the cork and shake well. If the limewater has a milky appearance the amount of carbonic acid will be at least 16 parts in 10,000. If the contents of the bottle remain clear, treat the bottle of 200 cubic centimetres m the same manner ; a milky appearance or turbidity in this would indicate 12 parts in 10,000. In a similar manner, turbidity in the 250 cubic centimeter bottle indicates 10 parts in 10,000 ; in the 300, 8 parts ; in the 350, 7 parts ; and in the 400, less than 6 parts. The ability to conduct more accurate analyses can be attained only by special study, and a knowledge of chemical properties and methods of investigation. Air Required for Ventilation. The amount of air required to maintain the standard of purity can be very easily determined provided we know the amount of carbonic acid given off in the process of respiration. It has been found by experiment that the average production of carbonic acid by an adult at rest is about 6 cubic foot per hour. If we assume the

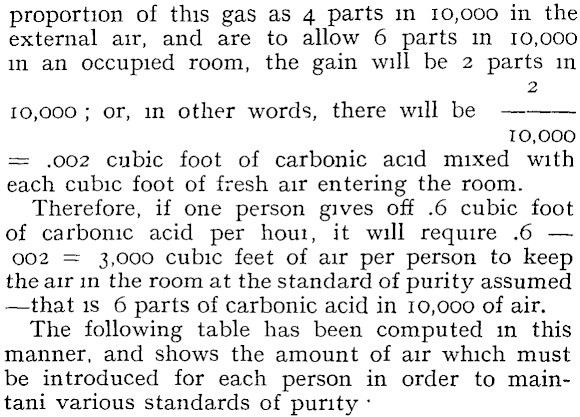

proportion of this gas as 4 parts m 10,000 in the external air, and are to allow 6 parts m 10,000 in an occupied room, the gain will be 2 parts in 2 10,000 ; or, in other words, there will be 10,000 = .002 cubic foot of carbonic acid mixed with each cubic foot of fresh air entering the room. Therefore, if one person gives off .6 cubic foot of carbonic acid per houi, it will require .6 — 002 = 3,000 cubic feet of air per person to keep the air in the room at the standard of purity assumed — that is 6 parts of carbonic acid in 10,000 of air. The following table has been computed in this manner, and shows the amount of air which must be introduced for each person in order to maintani various standards of purity •

While this table gives the theoretical quantities of air required for different standards of purity, and may be used as a guide, it will be better m actual practice to use quantities which experience has shown to give good results in different types of buildings. Authorities differ somewhat m their recommendations on this point, and the present tendency is toward an increase of air. The following table represents good modern practice and may be used with satisfactory results :

Force for Moving Air. Air is moved for ventilating purposes in two ways — first, by expansion due to heating ; and

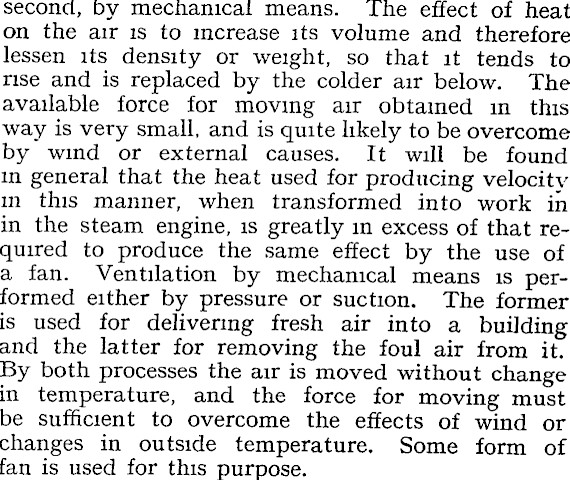

second, by mechanical means. The effect of heat on the air is to increase its volume and therefore lessen its density or weight, so that it tends to rise and is replaced by the colder air below. The available force for moving air obtained in this way is very small, and is quite likely to be overcome by wind or external causes. It will be found in general that the heat used for producing velocity m this manner, when transformed into work in in the steam engine, is greatly in excess of that required to produce the same effect by the use of a fan. Ventilation by mechanical means is performed either by pressure or suction. The former is used for delivering fresh air into a building and the latter for removing the foul air from it. By both processes the air is moved without change in temperature, and the force for moving must be sufficient to overcome the effects of wind or changes in outside temperature. Some form of fan is used for this purpose.

Measurements of Velocity. The velocity of air in ventilating ducts and flues is measured directly by an instrument called an anemometer. It consists of a series of flat vanes attached to an axis, and a series of dials. The revolution of the axis causes motion of the hands in proportion to the velocity of the air.

Air Distribution. The location of the air inlet to a room depends upon the size of the room and the purpose for which it is used. In the case of living-rooms m dwelling houses, the registers are placed either in the floor or in the wall near the floor ; this brings the warm air in at the coldest part of the room and gives an opportunity for warming or drying the feet if desired. In the case of schoolrooms, it is best to discharge air through openings in the wall at a height of 7or 8 feet from the floor. This gives a more even distribution, as the warmer air tends to rise and hence spreads uniformly under the ceiling ; it then gradually displaces other air and the room becomes filled with pure air without sensible currents or drafts. The cooler air sinks to the bottom of the room, and can be taken off through ventilating registers placed near the floor. The relative positions of the inlet and outlet are often governed to some extent by the building construction ; but, if possible, they should both be located m the same side of the room. The vent outlet should always, if possible, be placed in an inside wall, else it will become chilled and the air-flow through it will become sluggish. In theatres or halls, which are closely packed, the air should enter at or near the floor, in finely divided streams, and the discharge ventilation should be through openings in the ceiling.

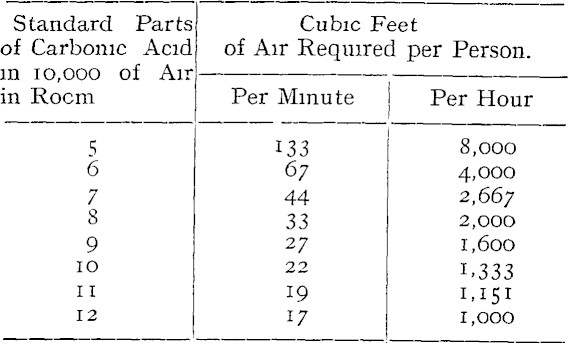

Standard Parts of Carbonic Acid in 10,000 of Air in Rocm Cubic F« of Air Reqmrec ;et . per Person. Per Minute Per Hour 5 6 133 67 8,000 7 8 44 33 2.7 ■2.2. 4,000 2,667 2,000 1,600 9 10 11 19 17 1.333 1.151 1,000 12 l.

Air Required for Ventilation.

Air Required per Occupant m Cubic Feet per Minute Cubic Feet per Hour. Hospitals High Schools Grammar Schools Theatres and Assembly Halls . . Churches 50 to 80 40 25 20 3,000 to 4,01 3,000 2,400 1,500 1,200

Air Supply for Various Ci asses of Buildings
