CLOCKWORK DRIVE FOR MODEL BOAT

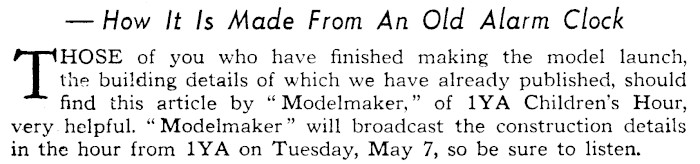

— How It Is Made From An Old Alarm Clock HOSE of you who have finished making the model launch, the building details of which we have already published, should " find this article by " Modelmaker," of 1YA Children’s Hour, very. helpful.. "Modelmaker" will broadcast the construction details in the hour from 1YA on Tuesday, May 7, so be sure’ to listen.
A.-Winding handle B.-Main spindle C.-Ratchet+ D.-Pawl

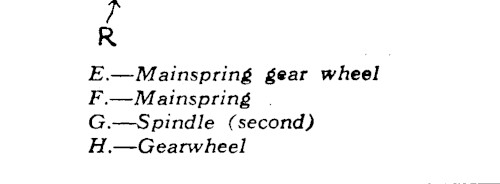

Fs, R E.-Mainspring gear wheel F.-Mainspring . G.-Spindle (second) H.-Gearwheel
1.-Pinion J.-tThird spindle K.-Alarm wheel L.-Pinion M.-Wheel from speedometer N.-Drive to propeller O.-Bearing. 1-8th in. brass tubing P.-Brass strip through which brass tubing is passed and soldered Q.-Standard. These keep the clockworks together The alarm wheel K is the one that works the sort of ratchet that moves the alarm hammer. The wheel M need not be one from a speedometer. It must, however, be one that will. mesh, The drive to propeller N, is a bicycle spoke, with the wheel M soldered to the end of it.
Here is the pattern of the propeller I promised. The heavy lines are the pattern. I have purposely left in the lines showing how I drew the pattern of the propeller. The edges of the propeller are sharpened and the blades bent to the shape shown in the smaller diagram. They are then twisted. The propeller is . attached to the shaft, by soldering the propeller to the nipple of a bicycle spoke. The shaft is a bicycle spoke. This propeller is quite suitable for the clockwork drive as well as the electric motor, though perhaps on a somewhat smaller scale. It depends on the strength of the drive.
