D.—l

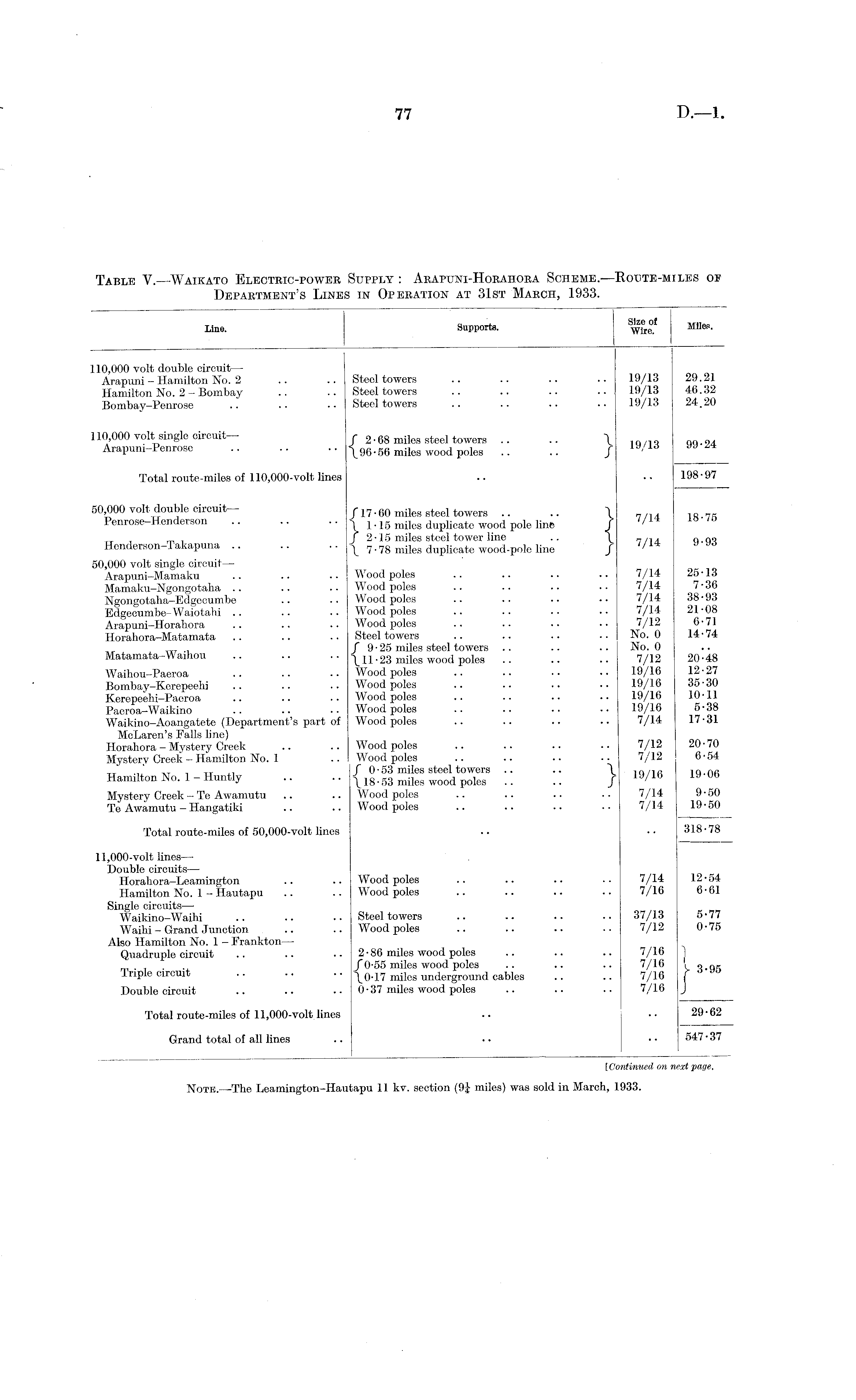

Table V. —Waikato Electric-power Supply: Arapuni-Horahora Scheme.—Route-miles of Department's Lines in Operation at 31st March, 1933.

77

Line. Supports. 1 Mile... 110,000 volt double circuit — Arapuni - Hamilton No. 2 .. .. Steel towers .. .. .. .. 19/13 29.21 Hamilton No. 2 - Bombay .. .. Steel towers .. .. .. .. 19/13 46.32 Bombay-Penrose .. .. .. Steel towers .. .. .. .. 19/13 24.20 110,000 volt single circuit— j 2 • 68 miles steel towers .. .. \ iq/iq 00.94 Arapum-Penrose \ 96 • 56 miles wood poles .. .. / 19/ld Total route-miles of 110,000-volt lines .. ..198-97 50,000 volt double circuit— /17-60 miles steel towers .. .. \ 7m ,„.„. Penrose-Henderson < 1 • 15 miles duplicate wood pole line / '' J 2-15 miles steel tower line .. \ 7/1 , q.qq Henderson-Takapuna .. .. \ 7. 78 mi i es duplicate wood-pole line / //14 y ™ 50,000 volt single circuit — Arapuni-Mamaku .. .. .- Wood poles .. .. .. .. 7/14 25-13 Mamaku-Ngongotaha .. .. .. Wood poles .. .. .. .. 7/14 7-36 Ngongotaha-Edgecumbe .. .. Wood poles .. .. .. .. 7/14 38-93 Edgecumbe-Waiotahi .. .. .. Wood poles .. .. .. .. 7/14 21-08 Arapuni-Horahora .. .. .. Wood poles .. .. .. •• 7/12 6-71 Horahora-Matamata .. .. .. Steel towers .. .. .. •■ No. 0 14-74 , TT , / 9-25 miles steel towers .. .. .. No. 0 Matamata-Waihou .. .. .. jx.23 miles wood poles 7/12 20-48 Waihou-Paeroa .. .. .- Wood poles .. .. .. .. 19/16 12-27 Bombay-Kerepeehi .. .. .. Wood poles .. .. .. .. 19/16 35-30 Kerepeehi-Paeroa .. .. .. Wood poles .. .. .. .. 19/16 10-11 Paeroa-Waikino .. .. •• Wood poles .. .. .. .. 19/16 5-38 Waikino-Aoangatete (Department's part of Wood poles .. .. .. .. 7/14 17-31 McLaren's Falls line) Horahora - Mystery Creek .. .. Wood poles .. .. .. .. 7/12 20-70 Mystery Creek - Hamilton No. 1 .. Wood poles .. .. .. ■■ 7/12 6-54 _ .,' , T ', -a- ., / 0• 53 miles steel towers .. .. \ io/ir iq.Afi Hamilton No. 1 - Huntly .. • • 1 18 - 53 miles wood poles .. .. j> 19/16 19 06 Mystery Creek - Te Awamutu .. .. Wood poles .. .. .. .. 7/14 9-50 Te Awamutu - Hangatiki .. .. Wood poles .. .. .. •• 7/14 19-50 Total route-miles of 50,000-volt lines .. ..318-78 11,000-volt lines — Double circuits — Horahora-Leamington .. .. Wood poles .. .. .. .. 7/14 12 • 54 Hamilton No. 1 - Hautapu .. .. Wood poles .. .. .. .. 7/16 6-61 Single circuits— Waikino-Waihi .. .. .. Steel towers .. .. .. .. 37/13 5-77 Waihi - Grand Junction , .. .. Wood poles .. .. .. .. 7/12 0-75 Also Hamilton No. 1 - Frankton — Quadruple circuit .. .. .. 2 • 86 miles wood poles .. .. .. 7/16 | _,..'.. f 0-55 miles wood poles .. .. .. 7/16 { q.nc Triple circuit \0-17 miles underground cables .. .. 7/16 f " 90 Double circuit .. .. .- 0 • 37 miles wood poles .. .. .. 7/16 J Total route-miles of 11,000-volt lines .. •• 29-62 Grand total of all lines .. .. • • 547 • 37 [Continued on next page. Note.—The Leamington-Hautapu 11 kv. section (9J miles) was sold in March, 1933.
