DEPARTMENT OF LANDS AND SURVEY. RANGITAIKI LAND DRAINAGE. REPORT FOR THE YEAR ENDED 31st MARCH, 1934, TOGETHER WITH STATEMENTS OF ACCOUNTS.

Appendix to the Journals of the House of Representatives, 1934 Session I, C-11

C.—ll.

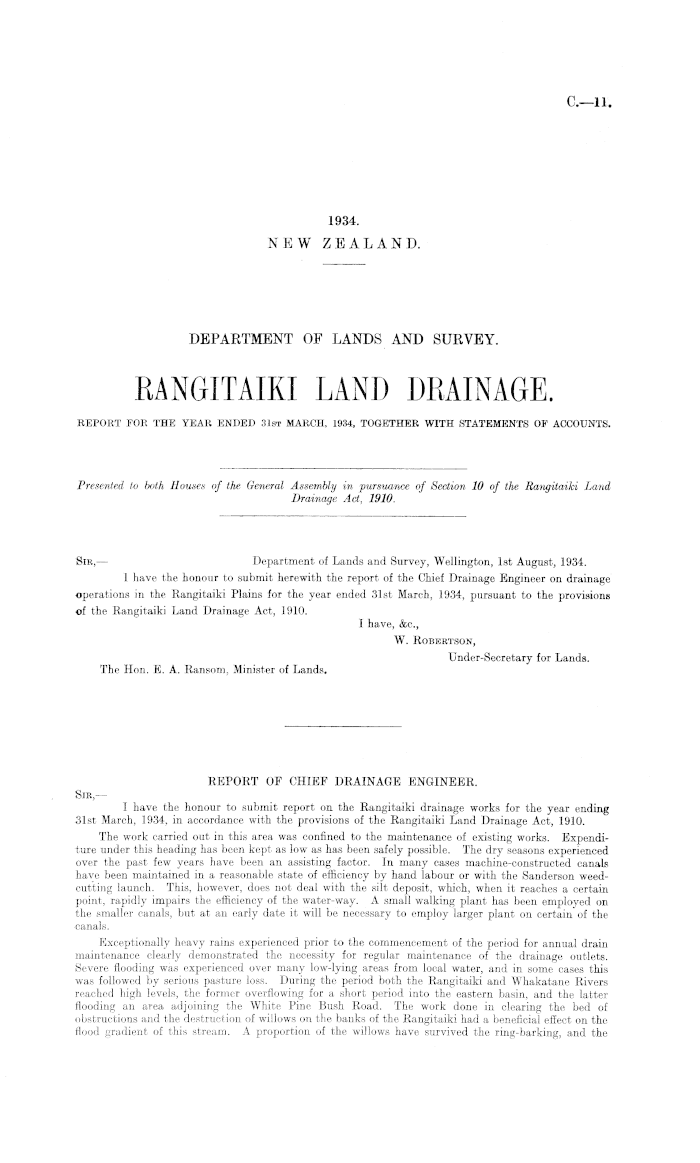

1934. NEW ZEALAND.

DEPARTMENT OF LANDS AND SURVEY. RANGITAIKI LAND DRAINAGE. REPORT FOR THE YEAR ENDED 31st MARCH, 1934, TOGETHER WITH STATEMENTS OF ACCOUNTS.

Presented to both Houses of the General Assembly in pursuance of Section 10 of the Rangitailii Land, Draitiage Act, 1910.

Sir, — Department of Lands and Survey, Wellington, Ist August, 1934. I have the honour to submit herewith the report of the Chief Drainage Engineer on drainage operations in the Rangitaiki Plains for the year ended 31st March, 1934, pursuant to the provisions of the Rangitaiki Land Drainage Act, 1910. I have, &c., W. Robertson, Under-Secretary for Lands. The Hon. E. A. Ransom, Minister of Lands.

REPORT OF CHIEF DRAINAGE ENGINEER. Sir, — I have the honour to submit report on the Rangitaiki drainage works for the year ending 31st March, 1934, in accordance with the provisions of the Rangitaiki Land Drainage Act, 1910. The work carried out in this area was confined to the maintenance of existing works. Expenditure under this heading has been kept as low as has been safely possible. The dry seasons experienced over the past few years have been an assisting factor. In many cases machine-constructed canals have been maintained in a reasonable state of efficiency by hand labour or with the Sanderson weedcutting launch. This, however, does not deal with the silt deposit, which, when it reaches a certain point, rapidly impairs the efficiency of the water-way. A small walking plant has been employed on the smaller canals, but at an early date it will be necessary to employ larger plant on certain of the canals. Exceptionally heavy rains experienced prior to the commencement of the period for annual drain maintenance clearly demonstrated the necessity for regular maintenance of the drainage outlets. Severe flooding was experienced over many low-lying areas from local water, and in some cases this was followed by serious pasture loss. During the period both the Rangitaiki and Whakatane Rivers reached high levels, the former overflowing for a short period into the eastern basin, and the latter flooding an area adjoining the White Pine Bush Road. The work done in clearing the bed of obstructions and the destruction of willows on the banks of the Rangitaiki had a beneficial effect on the flood gradient of this stream. A proportion of the willows have survived the ring-barking, and the

(I—ll.

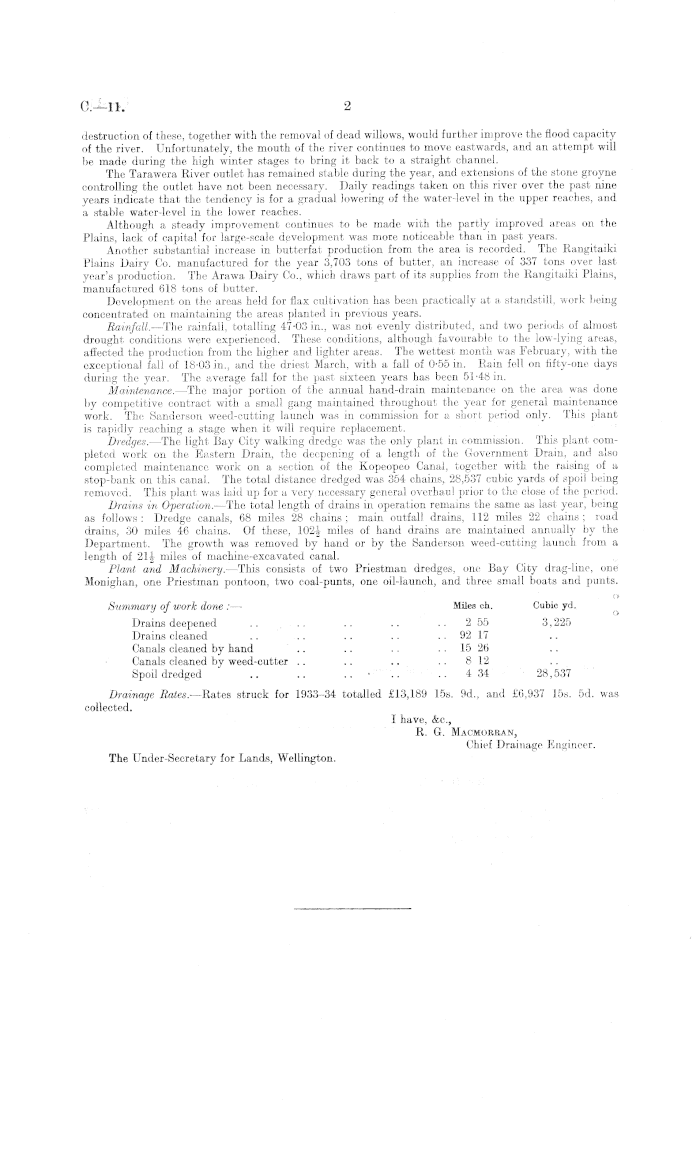

destruction of these, together with the removal of dead willows, would further improve the flood capacity of the river. Unfortunately, the mouth of the river continues to move eastwards, and an attempt will be made during the high winter stages to bring it back to a straight channel. The Tarawera River outlet has remained stable during the year, and extensions of the stone groyne controlling the outlet have not been necessary. Daily readings taken on this river over the past nine years indicate that the tendency is for a gradual lowering of the water-level in the upper reaches, and a stable water-level in the lower reaches. Although a steady improvement continues to be made with the partly improved areas on the Plains, lack of capital for large-scale development was more noticeable than in past years. Another substantial increase in butterf'at production from the area is recorded. The Rangitaiki Plains Dairy Co. manufactured for the year 3,703 tons of butter, an increase of 337 tons over last year's production. The Arawa Dairy Co., which draws part of its supplies from the Rangitaiki Plains, manufactured 618 tons of butter. Development on the areas held for flax cultivation has been practically at a standstill, work being concentrated on maintaining the areas planted in previous years. Rainfall. —The rainfall, totalling 47-03 in., was not evenly distributed, and two periods of almost drought conditions were experienced. These conditions, although favourable to the low-lying areas, affected the production from the higher and lighter areas. The wettest month was February, with the exceptional fall of 18-03 in., and the driest March, with a fair of 0-55 in. Rain fell on fifty-one days during the year. The average fall for the past sixteen years has been 51-48 in. Maintenance. —The major portion of the annual hand-drain maintenance on the area was done by competitive contract with a small gang maintained throughout the year for general maintenance work. The Sanderson weed-cutting launch was in commission for a short period only. This plant is rapidly reaching a stage when it will require replacement. Dredges. —The light Bay City walking dredge was the only plant in commission. This plant completed work on the Eastern Drain, the deepening of a length of the Government Drain, and also completed maintenance work on a section of the Kopeopeo Canal, together with the raising of a stop-bank on this canal. The total distance dredged was 354 chains, 28,537 cubic yards of spoil being removed. This plant was laid up for a very necessary general overhaul prior to the close of the period. Drains in Operation. —The total length of drains in operation remains the same as last year, being as follows : Dredge canals, 68 miles 28 chains ; main outfall drains, 112 miles 22 chains ; road drains, 30 miles 46 chains. Of these, 102J miles of hand drains are maintained annually by the Department. The growth was removed by hand or by the Sanderson weed-cutting launch from a length of 21|- miles of machine-excavated canal. Plant and Machinery. —This consists of two Priestman dredges, one Bay City drag-line, one' Monighan, one Priestman pontoon, two coal-punts, one oil-launch, and three small boats and punts. o Summary of work done: — Miles ch. Cubic yd. Drains deepened .... .. .. 2 55 3, 225 Drains cleaned .. .. .. .. .. 92 17 Canals cleaned by hand .. .. . . 15 26 Canals cleaned by weed-cutter .. .. .. 8 12 Spoil dredged .. .. .. .. 4 34 28,537 Drainage Rates. —Rates struck for 1933-34 totalled £13,189 15s. 9d., and £6,937 15s. sd. was collected. I have, &c., R. G. Macmobran, Chief Drainage Engineer. The Under-Secretary for Lands, Wellington.

2

C.—II.

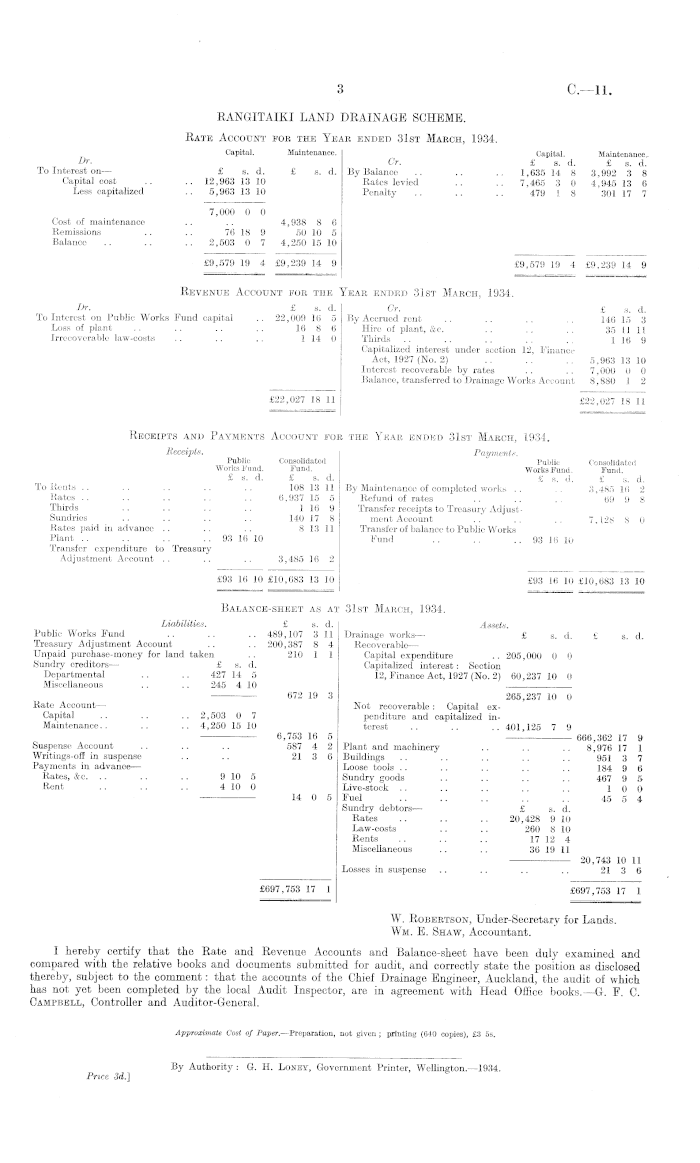

RANGITAIKI LAND DRAINAGE SCHEME. Rate Account foe the Year ended 31st March, 1934. Capital. Maintenance. Capital. Maintenance.. Dr - Or. £ s. d. £ s. d. To Interest on— £ s. d. £ s. d. By Balance .. .. .. 1,635 14 8 3,992 3 8 Capital cost .. .. 12,963 13 10 Rates levied .. .. 7,465 3 0 4,945 13 6 Less capitalized .. 5,963 13 10 Penalty .. .. .. 479 1 8 301 17 7 7,000 0 0 Cost of maintenance .. .. 4,938 8 6 Remissions .. .. 76 18 9 50 10 5 Balance .. .. .. 2,503 0 7 4,250 15 10 £9,579 19 4 £9,239 14 9 £9,579 19 4 £9,239 14 9 Revenue Account for the Year ended 31st March, 1934. Dr. £ s. d. Gr. £ s . d. To Interest on Public Works Fund capital .. 22,009 16 5 By Accrued rent .. .. .. .. 146 15 3 Loss of plant .. .. .. .. 16 8 6 Hire of plant, &c. .. .. .. 35 11 11 Irrecoverable law-costs .. .. .. 114 0 Thirds .. .. .. .. .. 116 9 Capitalized interest under section 12, Finance Act, 1927 (No. 2) .. .. .. 5,963 13 10 Interest recoverable by rates .. .. 7,000 0 0 Balance, transferred to Drainage Works Account 8,880 1 2 £22,027 18 11 £22,027 18 11 Receipts and Payments Account for the Year ended 31st March, 1934. Receipts. Payments. Public Consolidated Public Consolidated Works Fund. Fund. Works Fund. Fund. £ s. d. £ s. d. £ s. d. £ s. d. To Rents .. .. .. .. .. 108 13 11 By Maintenance of completed works .. .. 3,485 16 2 Rates .. .. .. .. .. 6,937155 Refund of rates .. .. .. 69 9 8 Thirds .. .. .. . . 116 9 Transfer receipts to Treasury AdjustSundries .. .. .. .. 140 17 8 ment Account .. ... .. 7,128 8 0 Rates paid in advance .. .. .. 8 13 11 Transfer of balance to Public Works Plant .. .. .. ... 93 16 10 Fund .. . . .. 93 16 10 Transfer expenditure to Treasury Adjustment Account .. .. .. 3,485 16 2 £93 16 10 £10,683 13 10 £93 16 10 £10,683 13 10 Balance-sheet as at 31st March, 1934. Liabilities. £ s. d. Assets. Public Works Fund .. .. .. 489,107 3 11 Drainage works— £ s. d. £ s. d. Treasury Adjustment Account .. .. 200,387 8 4 Recoverable— Unpaid purchase-money for land taken .. 210 1 1 Capital expenditure .. 205,000 0 0 Sundry creditors — £ s. d. Capitalized interest: Section Departmental .. .. 427 14 5 12, Finance Act, 1927 (No. 2) 60,237 10 0 Miscellaneous .. .. 245 4 10 672 19 3 265,237 10 0 Rate Account— Not recoverable : Capital exCapital .. .. .. 2,503 0 7 penditure and capitalized inMaintenance.. .. .. 4,250 15 10 terest .. .. .. 401,125 7 9 — 6,753 16 5 666,362 17 9 Suspense Account .. .. .. 587 4 2 Plant and machinery .. .. .. 8,976 17 1 Writings-ofl in suspense .. .. 21 3 6 Buildings .. .. .. .. .. 951 3 7 Payments in advance — Loose tools .. .. .. .. .. 184 9 6 Rates, &c. .. .. .. 9 10 5 Sundry goods .. .. .. .. 467 9 5 Rent .. .. .. 4 10 0 Live-stock .. .. .. .. .. 10 0 — 14 0 5 Fuel .. .. .. .. .. 45 5 4 Sundry debtors— £ s. d. Rates .. .. .. 20,428 9 10 Law-costs .. .. 260 8 10 Rents .. .. .. 17 12 4 Miscellaneous .. .. 36 19 11 20,743 10 11 Losses in suspense .. .. .. .. 21 3 6 £697,753 17 1 £697,753 17 1 W. Robertson, Under-Secretary for Lands. Wm. E. Shaw, Accountant. I hereby certify that the Rate and Revenue Accounts and Balance-sheet have been duly examined and compared with the relative books and documents submitted for audit, and correctly state the position as disclosed thereby, subject to the comment: that the accounts of the Chief Drainage Engineer, Auckland, the audit of which has not yet been completed by the local Audit Inspector, are in agreement with Head Office books.—G. F. C. Campbell, Controller and Auditor-General.

Approximate Cost of Paper.—Preparation, not given ; printing (640 copies), £3 ss.

By Authority : G. H. Lomy, Government Printer, Wellington.—l 934.

Price 3d.]
