THE ELECTRIC TELEGRAPH.

Otago Daily Times, Issue 316, 24 December 1862, Page 5

THE ELECTRIC TELEGRAPH.

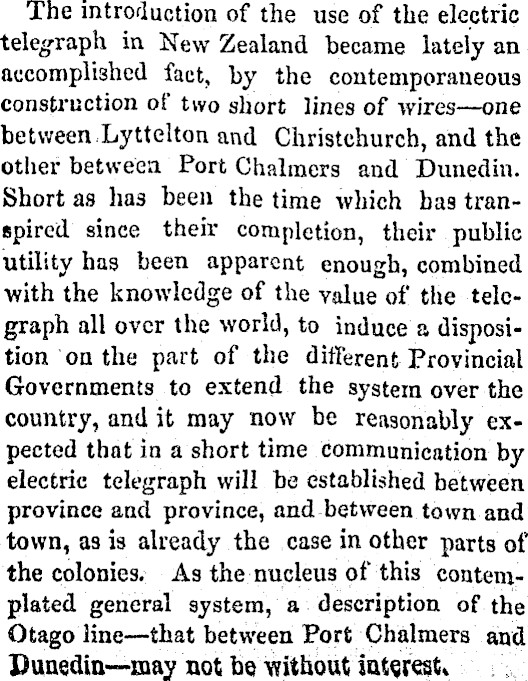

The introduction of the use of the electric telegraph in New Zealand became lately an accomplished fact, by the contemporaneous construction of two short lines of wires—one between Lyttelton and Christchurch, and the other between Port Chalmers and Dunedin. Short as has been the time which has transpired since their completion, their public utility has been apparent enough, combined with the knowledge of the value of the telegraph all over the world, to induce a disposition on the part of the different Provincial Governments to extend the system over the country, and it may now be reasonably expected that in a short time communication by electric telegraph will be established between province and province, and between town and town, as is already the case in other parts of the colonies. As the nucleus of this contemplated general system, a description of the Otago line—that between Port Chalmers and Dunedin—may not be Without int^reatt

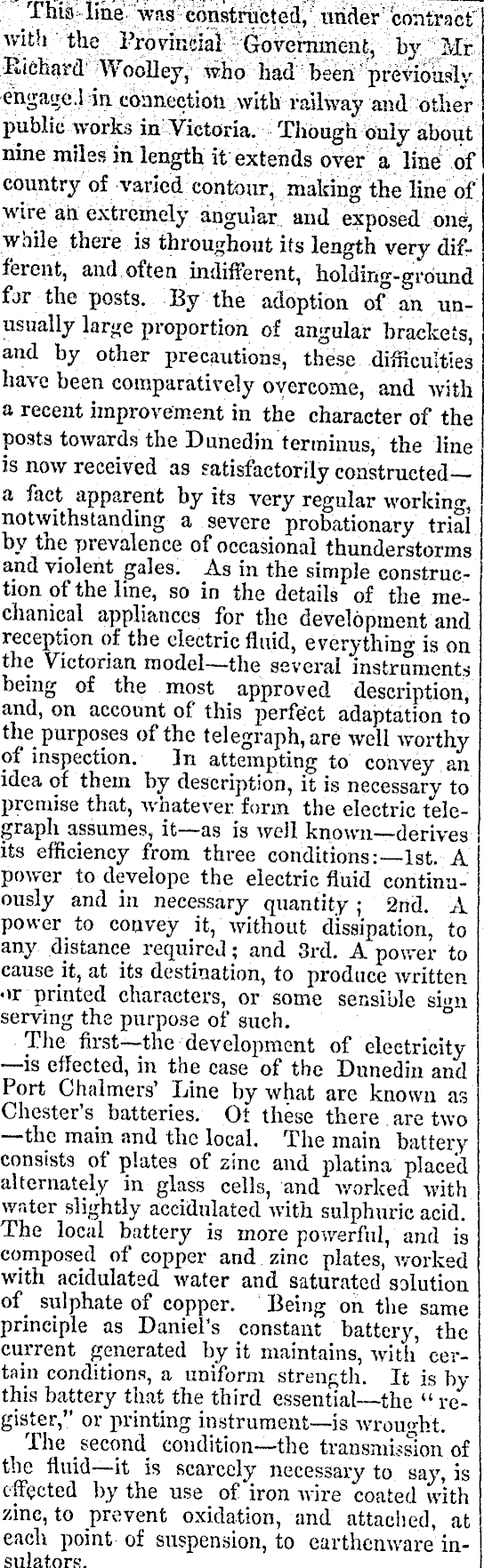

This line wag constructed, under contract with the Provincial Government, b\' 3lr Richard Woollcy, who had been previously engasjc.l in connection with railway and other public works in Victoria. Though only about nine miles in length it extends over a line of country of varied contour, making the line of wire an extremely angular and exposed one, while there is throughout its length very different, and often indifferent, holding-ground far the posts. By the adoption of an unusually large'proportion of angular brackets, and by other precautions, these .difficulties hare been comparatively overcome, and with a recent improvement in the character of the .posts towards the Dunedin terminus, the line is now received as satisfactorily constructed— a fact apparent by its very regular working, notwithstanding a severe probationary trial by. the prevalence of occasional thunderstorms and violent gales. As in the simple construction of the line, so in the details of the mechanical appliances for the development and reception of the electric fluid, everything is on the Victorian model—the several instruments being of the most approved descriptionand, on account of this perfect adaptation to the purposes of the telegraph, are well worthy of inspection. In attempting to convey an idea of them by description, it is necessary to premise that, whatever, form the electric telegraph assumes, it—as is well known—derives its efficiency from three conditions:—lst. A power to develope the electric fluid continuously and in necessary quantity ; 2nd. A power to convey it, without dissipation, to any distance required; and 3rd. A power to cause it, at its destination, to produce written •wr printed characters, or some sensible si»u serving the purpose of such. ° The first—the development of electricity —is effected, in the case of the Dunedin and Port Chalmers' Line by what are known as Chester's batteries. Ot these there, are two —the main and the local. The main battery consists of plates of zinc and platina placed alternately in glass cells, and worked with water slightly accidulated with sulphuric acid. The local battery is more powerful, and is composed of copper and zinc plates, worked with acidulated water and saturated solution of sulphate of copper. Being on the same principle as Daniel's constant battery, the current generated by it maintains, with certain conditions, a uniform strength. It is by this battery that the third essential—the " register," or printing instrument—is wrought. The second condition—the transmission of the fluid—it is scarcely necessary to say, is effected by the use of iron wire coated with zinc, to prevent oxidation, and attached, at each point-of suspension, to earthenware insulators.

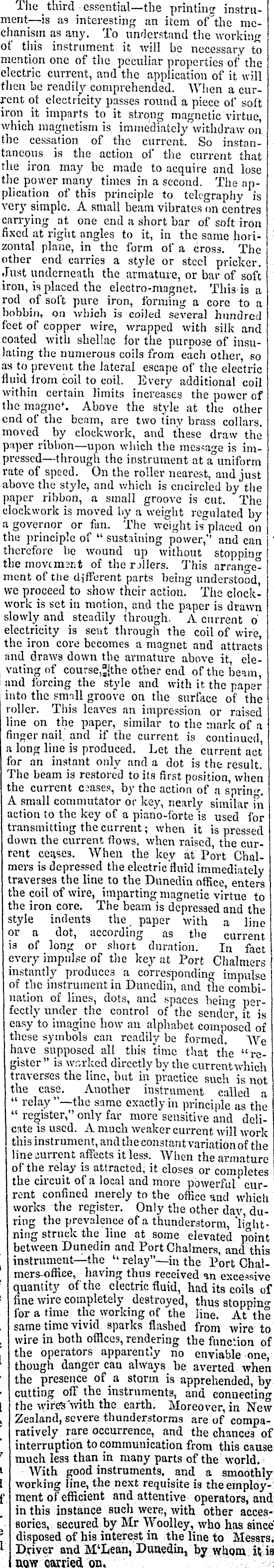

Ihe third essential—the printing instrument—is as interesting an item of~the mechanism as any. To understand the working of this instrument it will be necessary to mention one of the peculiar properties of the electric current, and the application of it will then be readily comprehended. When a current oi electricity passes round a piece of soft iron it imparts to it strong magnetic virtue, which-magnetism is immediately withdraw oa the cessation of the current. So instantaneous is the action of the current that the iron may he made to acquire and lose the power many times in a second. The application of this principle to telegraphy is very simple. A small beam vibrates on centres carrying at one end a short bar of soft iron fixed at right angles to it, in the same horizontal plane, in the form of a cross. The other end carries a style or steel pricker. Just underneath the armature, or bar of soft iron, is placed the electro-magnet. This is a rod of soft pure iron, forming a core to a bobbin, on which is coiJed several hundred feet of copper wire, wrapped with silk and coated with sheliac for the purpose of insulating the numerous coils from each other, so as to preventthe lateral escape of the electric fluid irom coil to coil. Every additional coil within certain limits increases the power of the magne*. Above the style at the other end of the beam, are two tiny brass collars, moved by clockwork, and these draw the paper ribbon—upon which the message is impressed—through the instrument at a uniform rate of speed. On the roller nearest, and just above the style, and which is encircled by the paper ribbon, a small groove is cut. The clockwork is moved by a weight regulated by a governor or fan. The weight is placed on the principle of " sustaining power," and can therefore be wound up without stopping the movcmsEt of the rjllers. This arrange" ment of the different parts being understood, we proceed to show their action. The clockwork is set in motion, and the paper is drawn slowly and steadily through. A current o electricity is sent through the coil of wire, the iron core becomes a magnet and attracts and draws down the armature above it, elevating of course^jthe other end of the beam, and forcing the style and with it the paper into the small groove on the surface of the roller. This leaves an impression or raised line on the paper, similar to the mark of a finger nail" and if the current is continued, a long line is produced. Let the current act for an instant only and a dot is the result. The beam is restored to hs first position, when the current ceases, by the action of a sprin^. A small commutator or key, nearly similar In action to the key of a piano-forte is used for transmitting the current; when it is pressed down the current flows, when raised, the current censes. When the key at Port Chalmers is depressed the electric fluid immediately traverses the line to the Dunedin office, enters the coil of wire, imparting magnetic virtue to the iron core. The beam is depressed and the style indents the paper with a line or a dot, according as the current is of long or short duration. In fact every impulse of the key at Port Chalmers instantly produces a corresponding impulse of the instrument in Dunedin, and the combiiiation of lines, dots, and spaces hem«- perfectly under the control of the sender, it is easy to imagine how an alphabet composed of these symbols can readily be formed. We have supposed all this time that the "re- , gister " is worked directly by the current which traverses the line, but in practice such is not the case. Another instrument called a " relay "—the same exactly in principle as the " register," only far more sensitive and delicate is used. A much weaker current will work this instrument, and the constant variation of the line current affects it less. When the armature of the relay is attracted, it closes or completes the circuit of a local and more powerful current confined merely to the office and which works the register. Only the other day, during the prevalence of a thunderstorm, lightning struck the line at some elevated point between Dunedin and Port Chalmers, and this instrument—the " relay"—in the Port Chal-mers-office, having thus received in excessive quantity of the electric fluid, had its coils of fine wire completely destroyed, thus stoppinofor a time the working of the line, At the same time vivid sparks flashed from wire to wire in both offices, rendering the function of the operators apparently no enviable one, though danger always be averted when the presence of a storm is apprehended, by cutting off the instruments, and connecting the wires'with the earth. Moreover, in New Zealand, severe thunderstorms are of comparatively rare occurrence, and the chance 3of interruption to communication from this cause much less than in many parts of the worlds With good instruments, and a smoothly working line, the next requisite is the employ-? ment of efficient and attentive operators, and in this instance such were, with other accessories, secured, by Mr "VYoolley, who has since" disposed of his interest in the line to Messrs, Driver and H'Leab, Puuedrnj by itia aow carried bo.
