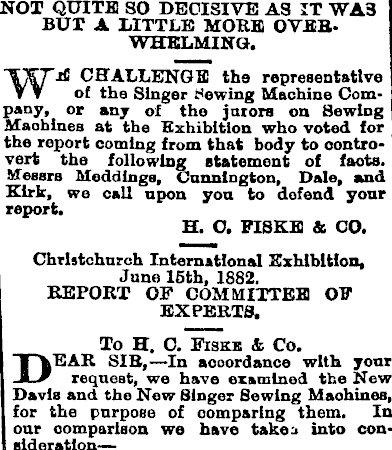

NOT QUITE SO DECISIVE AS IT WAS BUT A LITTLE MOKE OVERWHELMING. WE CHALLENGE the representative of the Singer Sewing Machine Company, or any of the jnrora on Sewing Machines at the Exhibition who voted for the report coming from that body to controvert the following statement of facts. Messrs Meddlnga, Cnnnlngton, Dale, and Kirk, we call npon you to defend your report. H. O. FIBKB & CO. Christchurch International Exhibition, June 15th, 1882, REPORT OP COMMITTEE OP EXPERTS. To H, C. Piske & Co. BEAR SIR, —In accordance with your request, we have examined the New Davis and the New Singer Sewing Machines, for the purpose of comparing them. In our comparison we have take j into consideration—

1. 1 he mechanical principle Involved 2. The quality of the material used 3. The degree of workmanship exhibited 4. The facility for doing a good and varied o ass of work. After taking both machines asunder, carefully examining every piece, and fully testing their capabilities, we have no hesitation in saying that we consider the Davis far the superior machine of the two. Our reasons are as follows : In both machines the same method is adopted for actuating the needle bar, viz., a crank with roller working In a cam. This cam In the Davis Machine la out oat of a solid piece of steel and hardened, while in the Singer it is not only very much lighter, bat is made of common cast iron.

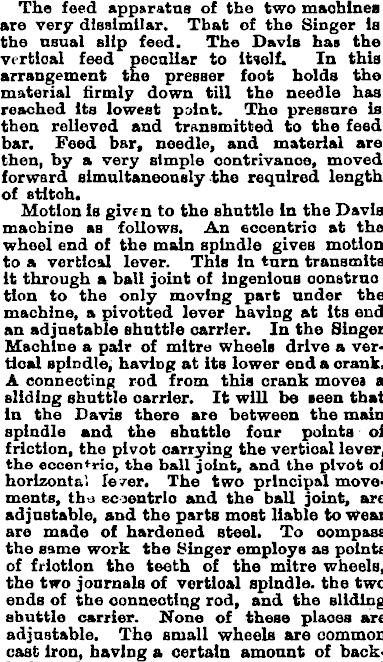

The feed apparatus of the two machines are very dissimilar. That of the Singer la the usual slip feed. The Davis haa the vertical feed peculiar to Itself. In this arrangement the presser foot holds the material firmly down till the needle haa reached its lowest point. The pressure is then relieved and transmitted to the feed bar. Feed bar, needle, and material are then, by a very simple contrivance, moved forward simultaneously the required length of stltoh. Motion is givf n to the shuttle In the Davis machine as follows. An eccentric at the wheel end of the main spindlo gives motion to a vertical lever. This In turn transmits it through a ball joint of ingenious construe tion to the only moving part under the machine, a pivotted lever having at its end an adjustable shuttle carrier. In the Singer Machine a pair of mitre wheels drive a vertical spindle, having at its lower end a crank. A connecting rod from this crank moves a eliding shuttle carrier. It will be seen that in the Davis there ate between the main spindle and the shuttle four points of friction, the pivot carrying the vertical lever, the eccentric, the ball joint, and the pivot of horizontal lorer. The two principal movements, the eccentric and the ball joint, are adjustable, and the parts moat liable to wear are made of hardened steel. To compass the same work the Singer employs as points of friction the teeth of the mitre wheels, the two journals of vertical spindle, the two ends of the connecting rod, and the sliding shuttle carrier. None of these places are adjustable. The small wheels are common cast iron, having a certain amount of back*

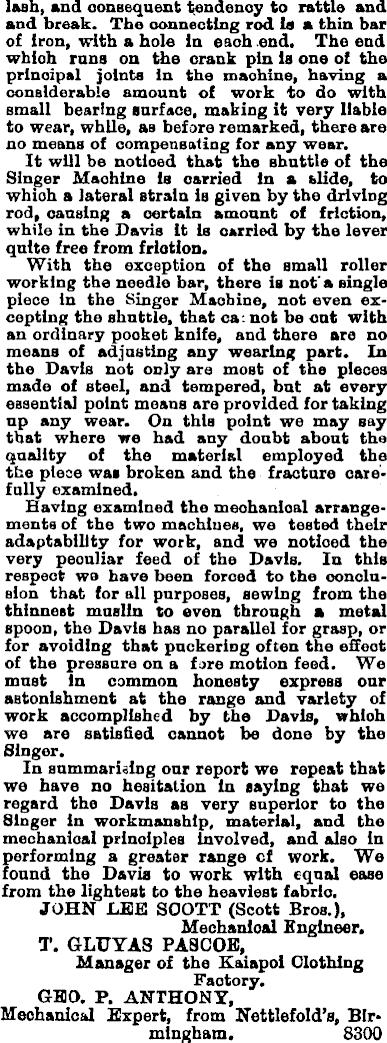

lash, and consequent tendency to rattle and and break. The connecting rod la a thin bar of Iron, with a hole In each end. The end which runs on the crank pin la one of the principal joints In the machine, having a considerable amount of work to do with small bearing surface, making it very liable to wear, while, as before remarked, there are no means of compensating for any wear. It will be noticed that the shuttle of the Singer Machine Is carried In a slide, to which a lateral strain is given by the driving rod, causing a certain amount of friction, while in the Davis it 1s carried by the lever quite free from friction. With the exception of the small roller working the needle bar, there is not'a single piece in the Singer Machine, not even excepting the shuttle, that ca: not be cut with an ordinary pocket knife, and there are no means of adjusting any wearing part. In the Davis not only are most of the pieces made of steel, and tempered, but at every essential point means are provided for taking np any wear. On this point we may say that where we had any donbt about the quality of the material employed the the piece was broken and the fractnre carefully examined. Having examined the mechanical arrangements of the two machines, we tested their adaptability for work, and we noticed the f very peculiar feed of the Davis. In this respect we have been forced to the conclusion that for all purposes, sewing from the thinnest muslin to even through a metal spoon, the Davis has no parallel for grasp, or for avoiding that pnckeriug often the effect of the pressure on a fare motion feed. We mast in common honesty express oar astonishment at the range and variety of work accomplished by the Davis, which we are satisfied cannot be done by the Singer. In summarising our report we repeat that we have no hesitation in saying that we regard the Davis as very superior to the Singer In workmanship, material, and the mechanical principles Involved, and also in performing a greater range cf work. We found the Davis to work with equal ease from the lightest to the heaviest fabric, JOHN DEE SOOTT (Scott Bros.), Mechanical Engineer. T. GLUYAS PABCOB, Manager of the Eaiapol Clothing Factory, GEO. P. ANTHONY, Mechanical Expert, from Nettlefold’s, Birmingham. 8300
