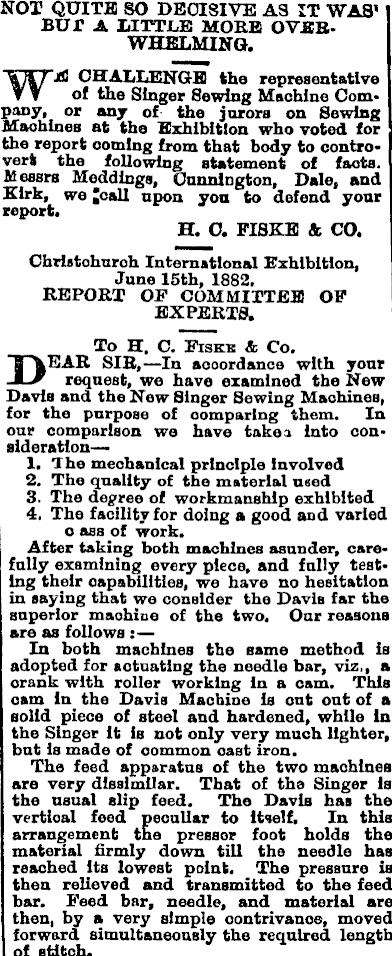

NOT QUITS! SO DECISIVE AS IT WAS' BUT A LITTLE MORE OVER. WHELMING. Wifi CHALLENGE the representative of the Singer Sewing Machine Company, or any of the jurors on Sewing Machines at the Exhibition who voted for the report coming from that body to controvert the following statement of facts. Messrs Meddinga, Oannlngton, Dale, and Kirk, we Jcall upon yon to defend your report, H. O. FISKB & CO. Christchurch International Exhibition, June 15th, 1882. REPORT OF COMMITTEE OP EXPERTS. To H, C. Fisks & Co. DEAR SIR, —In accordance with your request, we have examined the New Davis and the New Singer Sewing Machines, for the purpose of comparing them. In our comparison wo have takes into consideratlon— 1. The mechanical principle Involved 2. The quality of the material used 3. The degree of workmanship exhibited 4. The facility for doing a good and varied o ass of work. After taking both machines asunder, carefully examining every piece, and fully testing their capabilities, we have no hesitation in saying that we consider the Davis far the superior machine of the two. Our reasons are as follows : In both machines the same method is adopted for actuating the needle bar, viz,, a crank with roller working In a cam. This cam In the Davis Machine Is out out of a solid piece of steel and hardened, while In the Singer it is not only very much lighter, but is made of common oast iron. The feed apparatus of the two machines are very dissimilar. That of the Singer Is the usual slip feed. The Davis has the vertical feed peculiar to Itself. In this arrangement the pressor foot holds the material firmly down till the needle has reached Its lowest point. The pressure is then relieved and transmitted to the feed bar. Feed bur, needle, and material are then, by a very simple contrivance, moved forward simultaneously the required length of stitch.

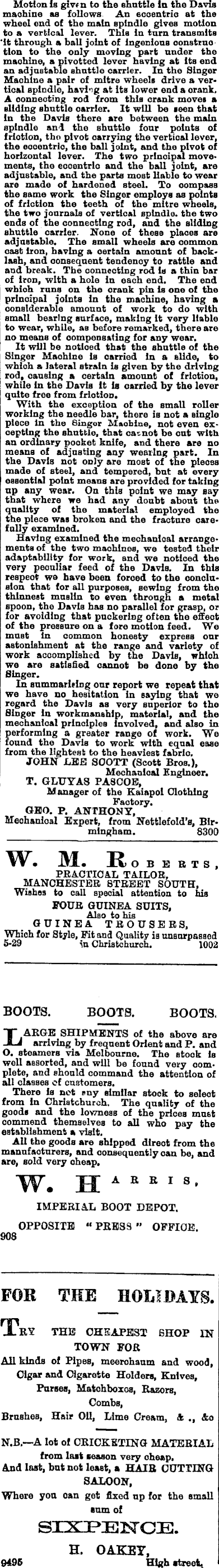

Motion is givf a to the shuttle in the Davis machine as follows An ecoentrio at the wheel end of the main spindle gives motion to a vertical lever. This in turn transmits ‘it through a ball joint of ingenious oonstmo tlon to the only moving part under the machine, a pivotted lever having at its end an adjustable shuttle carrier. In the Singer Machine a pair of mitre wheels drive a vertical spindle, having at its lower end a crank. A connecting rod from this crank moves a sliding shuttle carrier. It will be seen that in the Davis there are between the main spindle and the shuttle four points of f riotlon, the pivot carrying the vertical lever, the eccentric, the ball joint, and the pivot of horizontal lever. The two principal movements, the ecoentrio and the ball joint, are adjustable, and the parts most liable to wear are made of hardened steel. To compass the same work the Singer employs as points of friction the teeth of the mitre wheels, the two journals of vertical spindle, the two ends of the connecting rod, and the sliding shuttle carrier. Hone of these places are adjustable. The small wheels are common oast iron, having a certain amount of backlash, and consequent tendency to rattle and and break. The connecting rod is a thin bar of iron, with a hole in each end. The end which runs on the crank pin is one of the principal joints in the machine, having a considerable amount of work to do with small bearing surface, making it very liable to wear, while, as before remarked, there are no means of compensating for any wear. It will be noticed that the shuttle of the Singer Machine Is carried in a slide, to which a lateral strain la given by the driving rod, causing a certain amount of friction, while in the Davis It is carried by the lever quite free from friction. With the exception of the small roller working the needle bar, there is not a single piece in the Singer Machine, not even excepting the shuttle, that cannot be out with an ordinary pocket knife, and there are no means of adjusting any wearing part. In the Davis not only are most of the pieces made of steel, and tempered, but at every essential point means are provided for taking up any wear. On this point we may say that where wo had any doubt about the quality of the material employed the the piece was broken and the fracture carefully examined. Having examined the mechanical arrangements of the two machines, we tested their adaptability for work, and we noticed the very peculiar feed of the Davis. In this respect wo have been forced to the conclusion that for all purposes, sewing from the thinnest muslin to even through a metal spoon, the Davis has no parallel for grasp, or for avoiding that puckering often the effect of the pressure on a fore motion feed. We must in common honesty express our astonishment at the range and variety of work accomplished by the Davis, which we are satisfied cannot be done by the Singer. In summarising our report we repeat that we have no hesitation in saying that we regard the Davis as very superior to the Singer in workmanship, material, and the mechanical principles involved, and also in performing a greater range of work. We found the Davis to work with equal ease from the lightest to the heaviest fabric. JOHN LEE SOOTT (Scott Bros.), Mechanical Engineer. T. GLUYAS PABCOB, M onager of the Eaiapol Clothing Factory. GEO, P. ANTHONY, Mechanical Expert, from Nettlefold’s, Birmingham. 8300 "W • IML. R; OBEE TS , PRACTICAL TAILOH, MANCHESTER STREET SOUTH. Wishes to call special attention to his FOUR GUINEA SUITS, Also to his GUINEA TROUSERS, Which for Style, Fit and Quality is unsurpassed 5-29 in Christchurch. 1002 BOOTS. BOOTS. BOOTS. I ARGE SHIPMENTS of the above are -i-s arriving by frequent Orient and P. and O. steamers via Melbourne. The stock is well assorted, and will be found very complete, and should command the attention of all classes of customers. There la net »ny similar stock to select from In Christchurch. The quality of the goods and the lowness of the prices must commend themselves to all who pay the establishment a visit. All the goods are shipped direct from the manufacturers, and oonseqnentiy can be, and are, sold very cheap. W. H A EHI 3 • IMPERIAL BOOT DEPOT. OPPOSITE “ PRESS ” OFFICE. 908 FOR Trs THE HOLIDAYS. THE CHEAPEST SHOP IN TOWN FOR All kinds of Pipes, meerohaum and wood. Cigar and Cigarette Holders, Knives, Purses, Matchboxes, Razors, Combs, Brushes, Hair Oil, Lime Cream, 4 ~ &o N.B.—A lot of CRICKETING MATERIAL from last season very cheap. And lost, but not least, a HAIR CUTTING SALOON, Where yon can get fixed np for the small sum of SXXJPEISTCE. H. OAKEY, 9495 High street.
