Globe, Volume XXIV, Issue 2600, 7 August 1882, Page 2

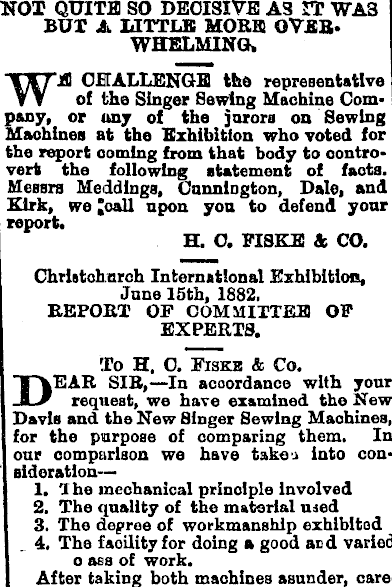

NOT QUITE SO DECISIVE AS IT WAS BUT A LITTLE MORE OVERWHELMING. WE CHALLENGE the representative of the Singer Sewing Machine Company, or any of the jurors on Sewing Machines at the Exhibition who voted for the report coming from that body to controvert the following statement of facta. Messrs Meddlngs, Cnnnlngton, Dale, and Kirk, we (Call upon yon to defend yonr report. | H. O. FISKS & CO. Christchurch International Exhibition, June 15th, 1882, REPORT OF COMMITTEE OF EXPERTS. To H. O. Fiske & Co. DEAR SIR, —In accordance with yonr request, we have examined the New Davis and the New Singer Sewing Machines, for the purpose of comparing them. In our comparison we have takec into consideration— 1. The mechanical principle Involved 2. The quality of the material used 3. The degree of workmanship exhibited 4. The facility for doing a good acd varied o aea of work. After taking both machines asunder, care-

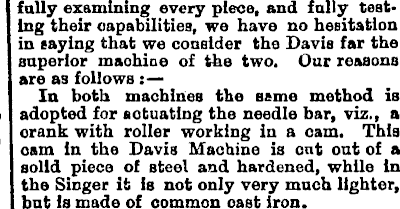

{ally examining every piece, and fully testing their capabilities, we have no hesitation in saying that we consider the Davis far the superior machine of the two. Our reasons are as follows ; In both machines the ssme method is adopted for actuating the needle bar, viz., a crank with roller working in a cam. This cam in the Davis Machine is cut out of a solid piece of steel and hardened, while in the Singer it is not only very much lighter, but is made of common oast iron.

The feed apparatus of the two machines are very dissimilar. That of the Singer Is the usual slip feed. The Davis has the vertical feed peculiar to itself. In this arrangement the preaser foot holds the material firmly down till the needle has reached its lowest point. The pressure is then relieved and transmitted to the feed bar. Feed bar, needle, and material are then, by a very simple contrivance, moved forward simultaneously the required length of stitch.

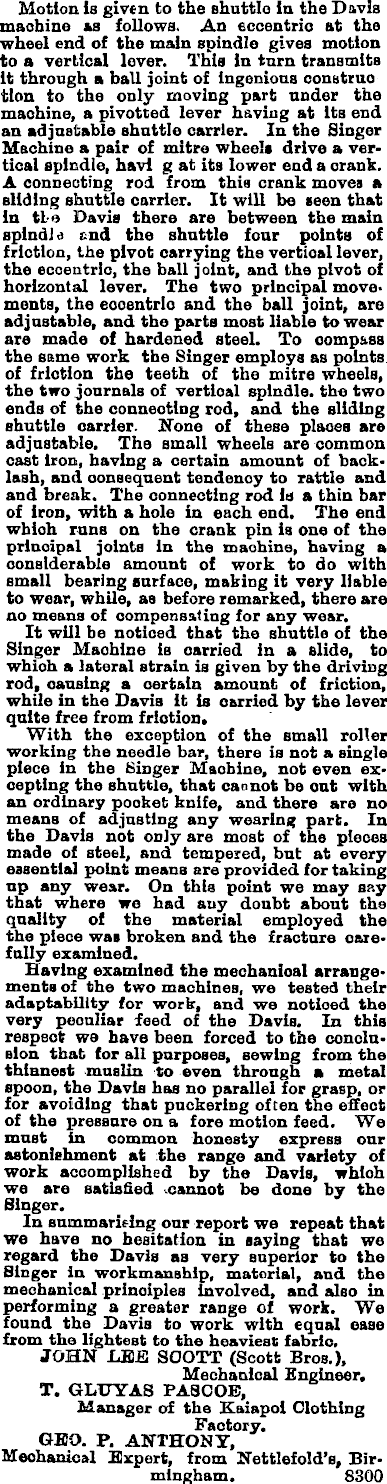

Motion ia given to the shuttle in the Davis machine as follows. An eccentric at the wheel end of the main spindle gives motion to a vertical lover. This in tarn transmits it through a ball joint of ingenious construe tlon to the only moving part under the machine, a pivotted lever having at its end an adjustable shuttle carrier. In the Singer Machine a pair of mitre wheel* drive a vertical spindle, havi g at its lower end a crank. A connecting rod from this crank moves a sliding shuttle carrier. It will be seen that in ti e Davis there are between the main splndia r.nd the shuttle four points of friction, the pivot carrying the vertical lever, the eccentric, the ball joint, and the pivot of horizontal lever. The two principal movements, the eccentric and the ball joint, are adjustable, and the parts most liable to wear are made of hardened steel. To compass the same work the Singer employs as points of friction the teeth of the mitre wheels, the two journals of vertical spindle, the two ends of the connecting rod, and the sliding shuttle carrier. None of these places are adjustable. The small wheels are common cast Iron, having a certain amount of backlash, and oonseqnent tendency to rattle and and break. The connecting rod is a thin bar of iron, with a hole in each end. The end which runs on the crank pin is one of the principal joints in the machine, having a considerable amount of work to do with small bearing surface, making it very liable to wear, while, as before remarked, there are no means of compensating for any wear. It will be noticed that the shuttle of the Singer Machine is carried in a slide, to which a lateral strain is given by the driving rod, causing a certain amount of friction, while in the Davis it is carried by the lever qnlte free from friotion. With the exception of the small roller working the needle bar, there is not a single piece in the Singer Machine, not even excepting the shuttle, that cannot be ont with an ordinary pocket knife, and there are no means of adjusting any wearing part. In the Davis not only are most of the pieces made of steel, and tempered, bnt at every essential point means are provided for taking up any wear. On this point we may say that where we had any doubt about the quality of the material employed the the piece was broken and the fracture carefully examined. Having examined the mechanical arrangements of the two machines, we tested their adaptability for work, and we noticed the very peculiar feed of the Davis. In this respect wo have been forced to the conclusion that for all purposes, sewing from the thinnest muslin to even through a metal spoon, the Davis has no parallel for grasp, or for avoiding that puckering often the effect of the pressure on a fore motion feed. We mnst in common honesty express onr astonishment at the range and variety of work accomplished by the Davis, wbloh we are satisfied cannot be done by the Singer. In snmmarielng onr report wo repeat that we have no hesitation in saying that we regard the Davis as very superior to the Singer in workmanship, material, and the mechanical principles Involved, and also in performing a greater range of work. We found tlm Davis to work with equal ease from the lightest to the heaviest fabric, JOHN USE SOOTT (Scott Bros.), Mechanical Engineer. T. GLHYAB PASCOB, Manager of the Kaiapol Clothing Factory. GEO. P. ANTHONY, Mechanical Expert, from Nettlefold’s, Birmingham. 8300
